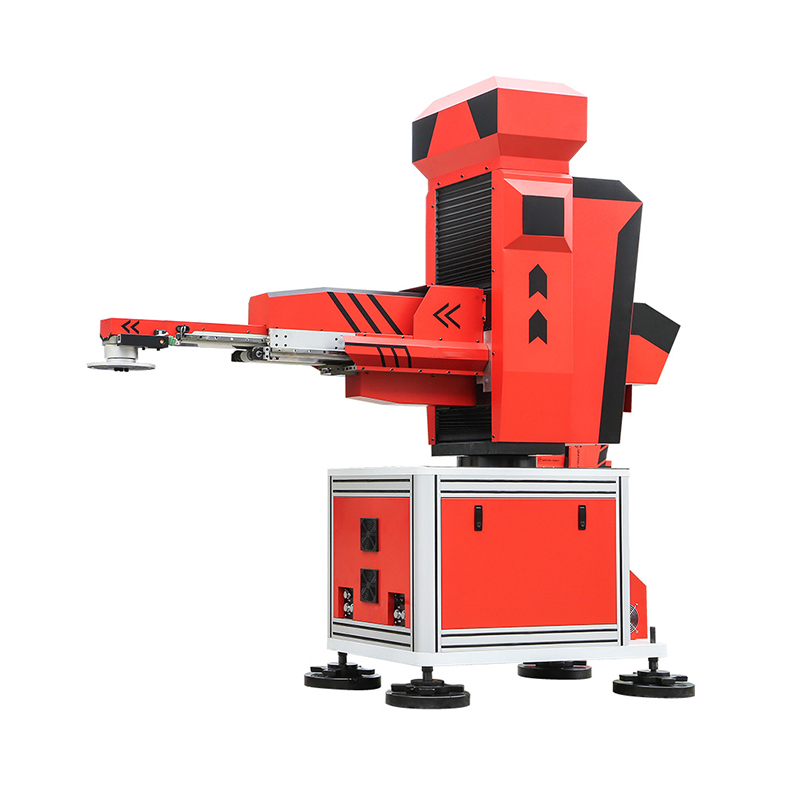

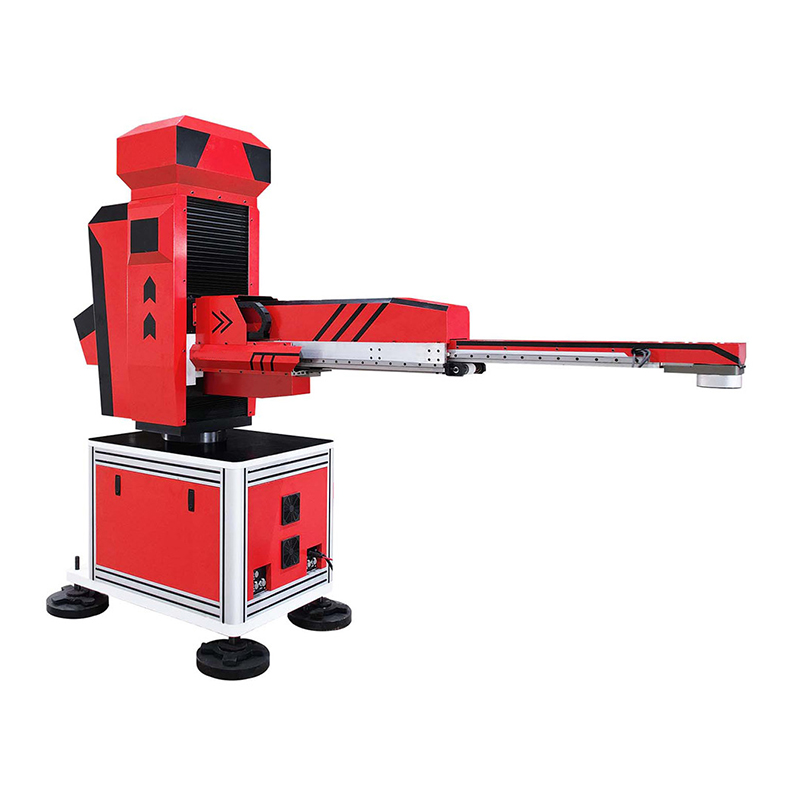

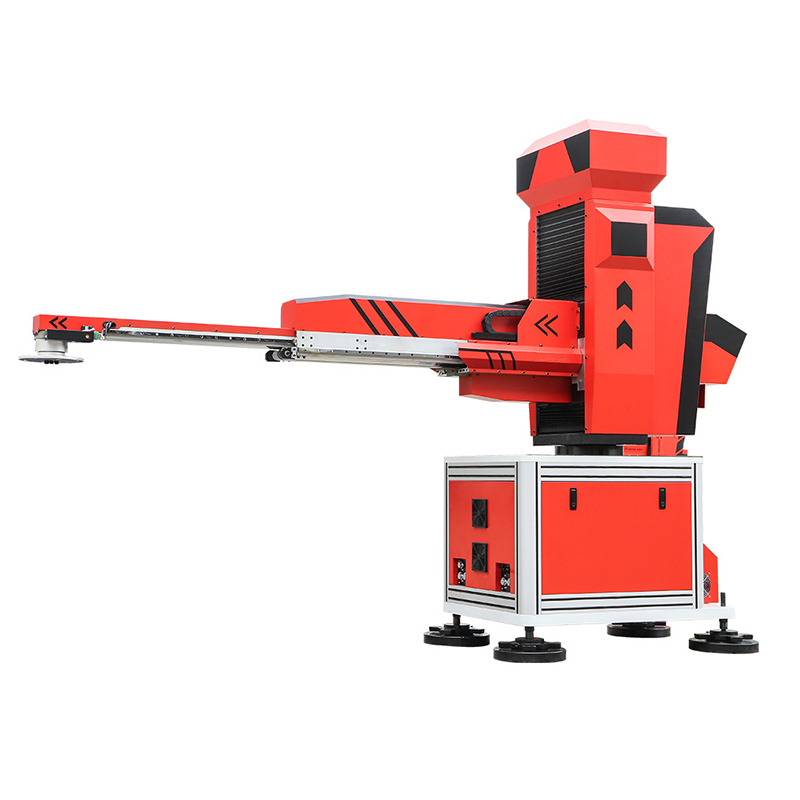

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

- High-strength robotic arm structure design.
- Heavy-duty gripping capacity.
- Swing arm types are equipped with an independent air source, no interference with the on-site air source, and enhance the operation stability of the robotic arm.

Availability:

Quantity:



Inquire Add to Basket

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

Model:
BB-Z-MD-2400-10-4/5

Product Description

Model		BB-Z-MD-2400-10-4/5
Parameter		Unit	Index
Maximum working radius		mm	2400
Minimum working radius		mm	1050
Grip size		mm	≤1000x1000
Centre grip weight		kg	≤10
Maximum SPM		pcs/min	10
Positioning precision		mm	±0.2
Body size (H is variable) (LWH)		mm	1950╳950╳2350
Body weight		kg	≈900
Axial travel stroke	Arm swing angle	°	±170
	Arm vertical telescopic stroke (Min grip level)	mm	0～340 (1000)
	Arm horizental telescopic stroke	mm	530
	Arm turning angel (N/A for 4 axes model)	°	±180
	Suction disc rotating angle	°	±360
