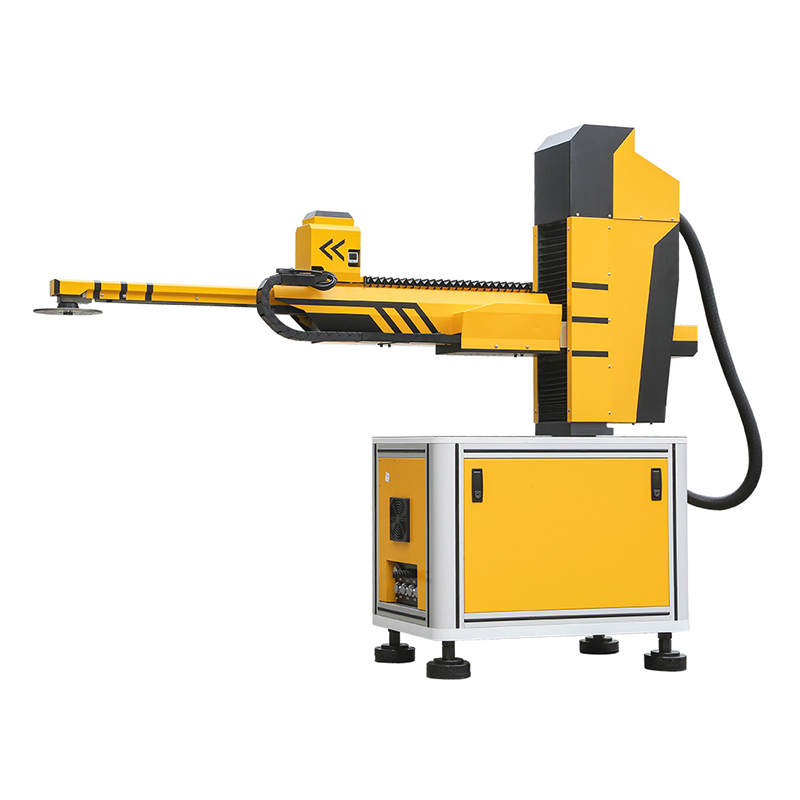

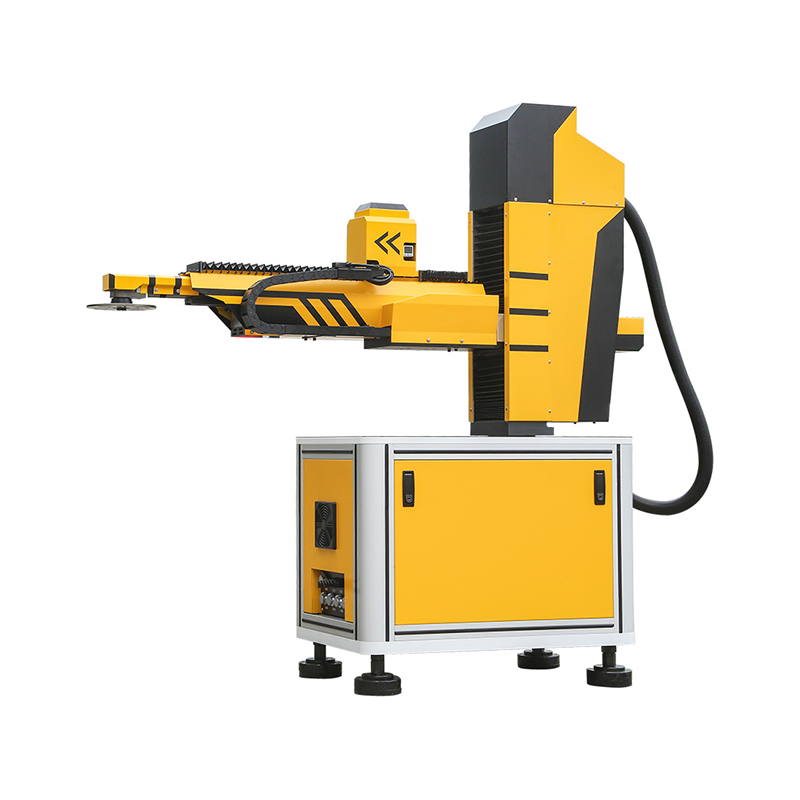

3KG Swing arm stamping manipulator

3KG Swing arm stamping manipulator

3KG Swing arm stamping manipulator

Share to:

3KG Swing arm stamping manipulator BB-J-MD-1500-3-4/5

- Economical design, eﬀectively saving initial investment.
- High quality domestic key motion components with stable and reliable operation.

Availability:

Quantity:



Inquire Add to Basket

3KG Swing arm stamping manipulator

3KG Swing arm stamping manipulator

Model:
BB-J-MD-1500-3-4/5

Product Description

Model		BB-J-MD-1500-3-4/5
Parameter		Unit	Index
Maximum working radius		mm	1500
Minimum working radius		mm	1060
Grip size		mm	≤400╳400
Centre grip weight		kg	≤3
Maximum SPM		pcs/min	13
Positioning precision		mm	±0.2
Body size (H is variable) (LWH)		mm	1600╳500╳1650
Body weight		kg	≈350
Axial travel stroke	Arm swing angle	°	±135
	Arm vertical telescopic stroke (Min grip level)	mm	0～340 (840)
	Arm horizental telescopic stroke	mm	440
	Arm turning angel (N/A for 4 axes model)	°	±180
	Suction disc rotating angle	°	±360

Related Products

3.1M Joint stamping robot GJ-Z-DL-3100-80/120-4/5

3.1M Joint stamping robot GJ-Z-DL-3100-80/120-4/5

2.4M Joint stamping robot GJ-H-DL-2400-55-4/5

2.4M Joint stamping robot GJ-H-DL-2400-55-4/5

1.8M Joint stamping robot GJ-H-DL-1800-28-4/5

1.8M Joint stamping robot GJ-H-DL-1800-28-4/5

1.6M Joint stamping robot GJ-H-DL-1600-10-4/5

1.6M Joint stamping robot GJ-H-DL-1600-10-4/5

1.4M Joint stamping robot GJ-H-MD-1400-10-4/5

1.4M Joint stamping robot GJ-H-MD-1400-10-4/5

1.4M Joint stamping robot GJ-H-DL-1400-10-4/5

1.4M Joint stamping robot GJ-H-DL-1400-10-4/5

1.4M Joint stamping robot GJ-J-YT-1400-10-4/5

1.4M Joint stamping robot GJ-J-YT-1400-10-4/5

1.5M Joint stamping robot GJ-J-DL-1400-10-4/5

1.5M Joint stamping robot GJ-J-DL-1400-10-4/5

1.2M Joint stamping robot GJ-J-DL-1200-6-4/5

1.2M Joint stamping robot GJ-J-DL-1200-6-4/5

20KG Swing arm stamping manipulator BB-Z-MD-4000-20-4/5

20KG Swing arm stamping manipulator BB-Z-MD-4000-20-4/5

20KG Swing arm stamping manipulator BB-Z-MD-2900-20-4/5

20KG Swing arm stamping manipulator BB-Z-MD-2900-20-4/5

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

10KG Swing arm stamping manipulator BB-Z-MD-2400-10-4/5

5KG Swing arm stamping manipulator BB-H-MD-1650-5-4/5

5KG Swing arm stamping manipulator BB-H-MD-1650-5-4/5

3KG Swing arm stamping manipulator BB-G-MD-1650-3-4/5

3KG Swing arm stamping manipulator BB-G-MD-1650-3-4/5

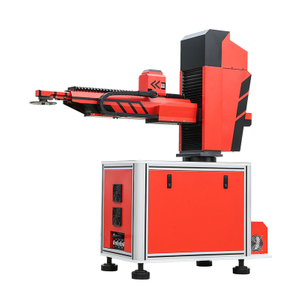

3KG Swing arm stamping manipulator BB-H-MD-1650-3-4/5
