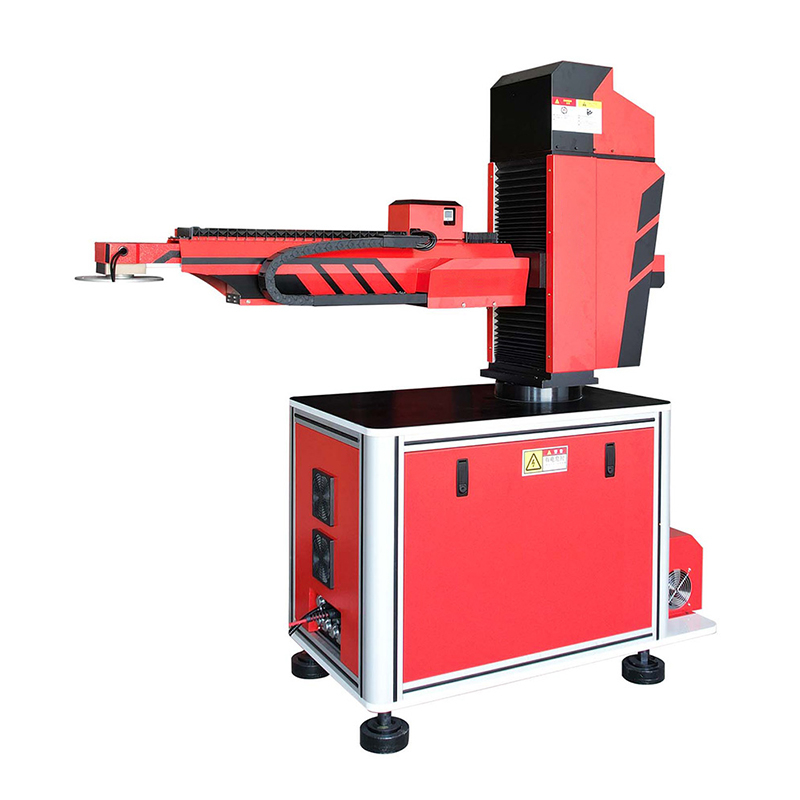

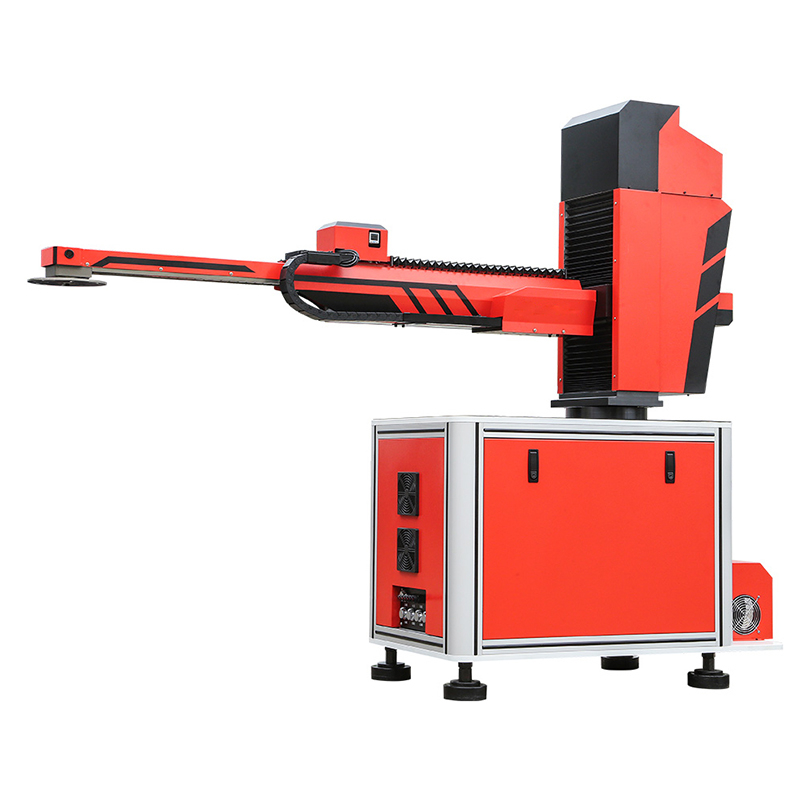

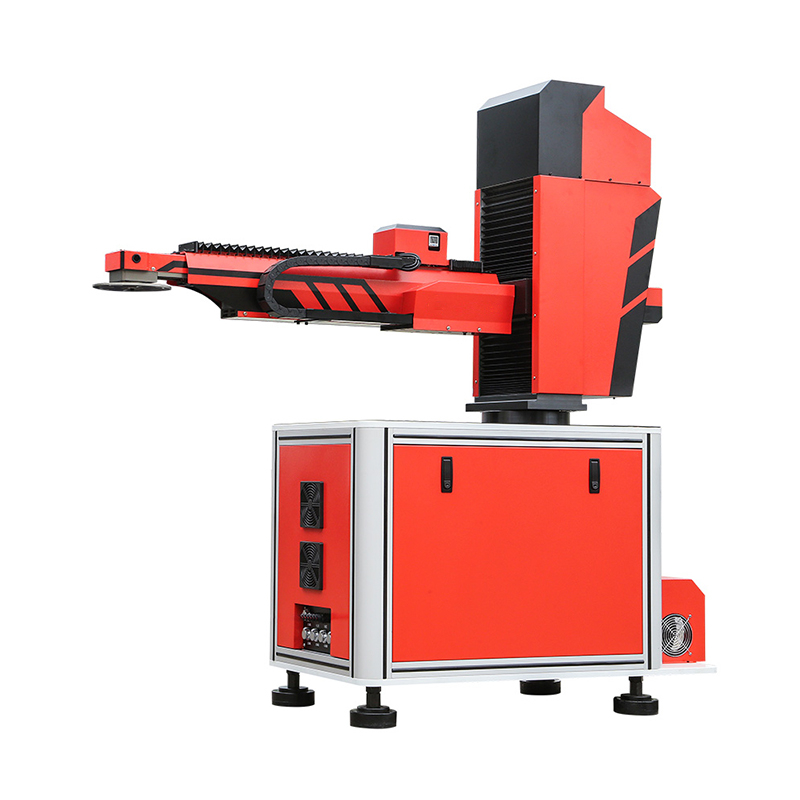

5KG Swing arm stamping manipulator BB-H-MD-1650-5-4/5

Share to:

5KG Swing arm stamping manipulator BB-H-MD-1650-5-4/5

- Built-in cable for easy deployment.
- Top brands key motion parts to achieve high speed, high stability and high reliability.
- Swing arm types are equipped with an independent air source, no interference with the on-site air source, and enhance the operation stability of the robotic arm.

Availability:

Quantity:



Inquire Add to Basket

Model:
BB-H-MD-1650-5-4/5

Product Description

Model		BB-H-MD-1650-5-4/5
Parameter		Unit	Index
Maximum working radius		mm	1650
Minimum working radius		mm	1120
Grip size		mm	≤600╳600 (S version) ≤800x800 (L version)
Centre grip weight		kg	≤5
Maximum SPM		pcs/min	15
Positioning precision		mm	±0.2
Body size (H is variable) (LWH)		mm	1800╳600╳1800
Body weight		kg	≈400
Axial travel stroke	Arm swing angle	°	±170
	Arm vertical telescopic stroke (Min grip level)	mm	0～340 (1000)
	Arm horizental telescopic stroke	mm	530
	Arm turning angel (N/A for 4 axes model)	°	±180
	Suction disc rotating angle	°	±360
