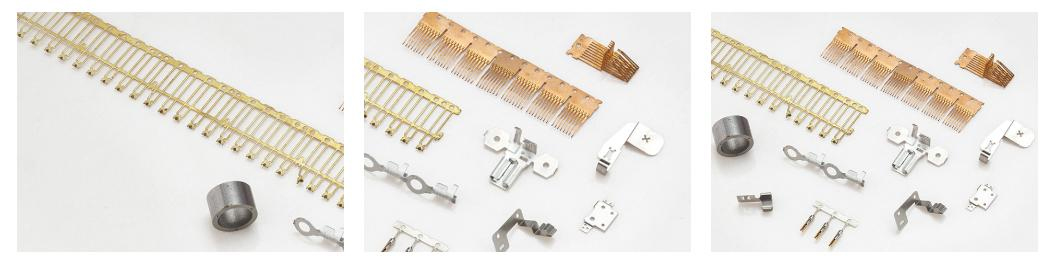

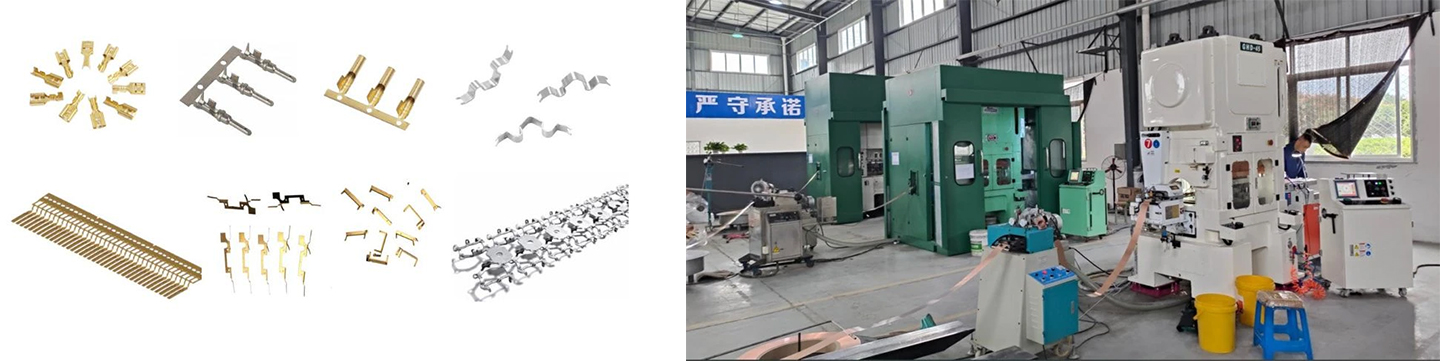

This H frame high speed press is with four guide columns, suitable for stamping some small precision parts with thin material, max speed can be up to 1000spm with small tonnage 30ton.
Features |
One-Piece Cast Iron Straight Side Press Frame Ensures Better Stability And Stamping Precision.
Compare To C Type Frame, It Has Better Eccentric Loading Capacity.
Forced Lubrication System To Minimize The Thermal Deformation , High Precision Products Processing Can Be Performed.
Review the specifications of our Y1P Series below, and then contact us for assistance in identifying the right mechanical press for your application.
Technical Datas |

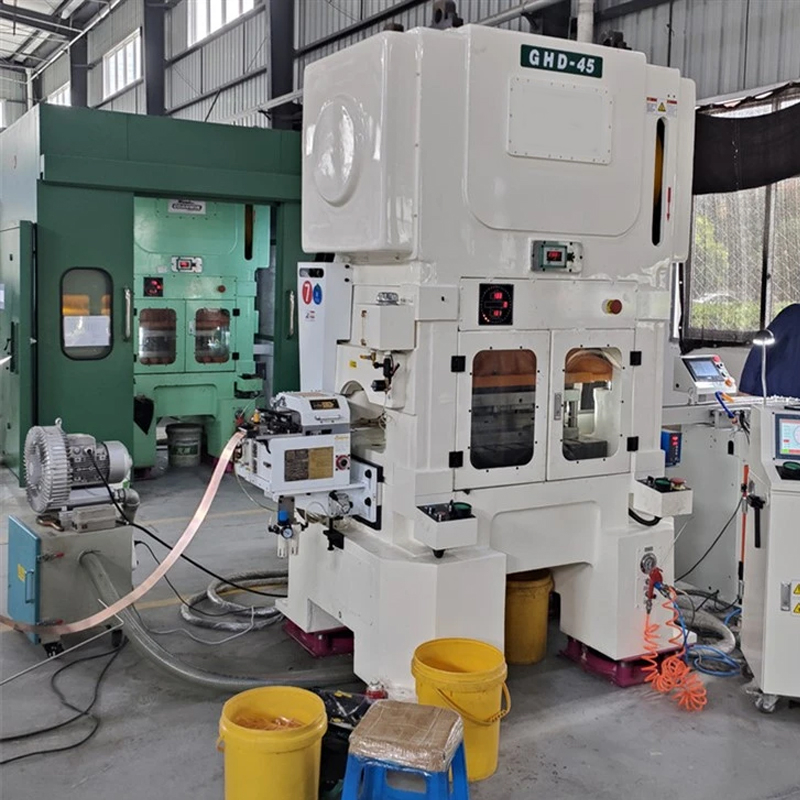

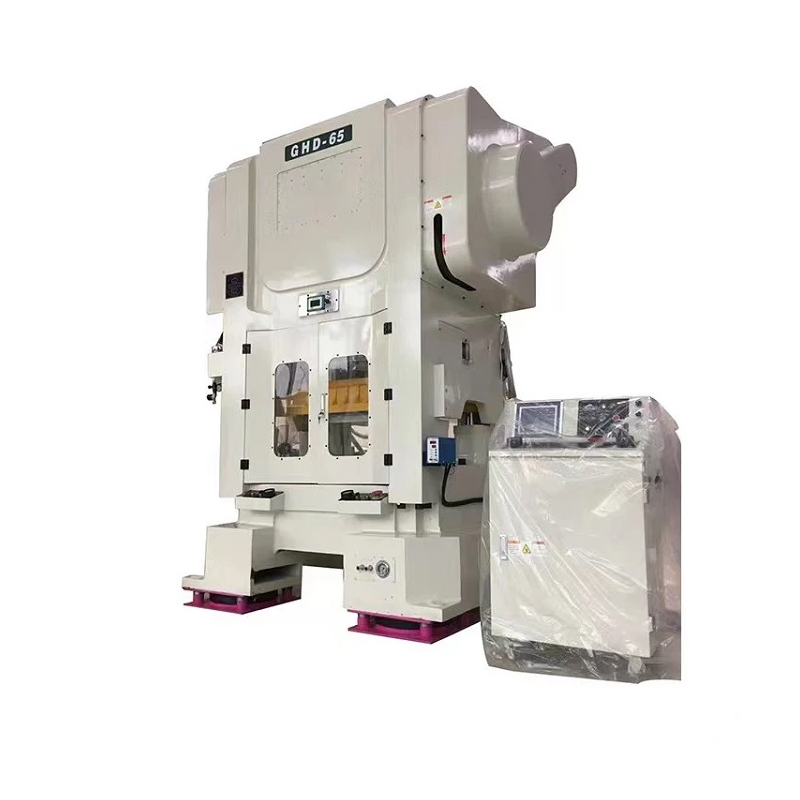

Model | GHD-30 | GHD-45 | GHD-65 | ||||||||||
Capacity | Ton | 30 | 45 | 65 | |||||||||
Stroke Length | mm | 20 | 25 | 30 | 40 | 20 | 25 | 30 | 40 | 20 | 30 | 40 | 50 |
Stroke Per Minute | SPM | 200-1000 | 200-900 | 200-800 | 200-600 | 200-900 | 200-800 | 200-700 | 200-600 | 200-800 | 200-600 | 200-500 | 200-400 |
Die Height | mm | 195-235 | 192-232 | 190-230 | 185-225 | 230-280 | 227-277 | 225-275 | 220-270 | 275-325 | 270-320 | 265-315 | 260-310 |
Slide Area | mm | 620x340 | 750x380 | 900x450 | |||||||||
Bolster Area | mm | 650x470x100 | 800x550x120 | 950x700x135 | |||||||||
Slide Adjustment | mm | 40 | 50 | 50 | |||||||||
Bed Opening | mm | 500x100 | 650x580x20 | 650x125 | |||||||||
Motor | kw | 7.5 | 11 | 18.5 | |||||||||
Lubrication |
| Oil lubricating system with oil cooling machine | |||||||||||
Speed Control |
| Inverter | |||||||||||
Clutch&Brake |
| Pneumatic friction | |||||||||||
Auto Top Stop |
| Standard | |||||||||||
Vibration System |
| Air cushion type&spring type are available | |||||||||||
