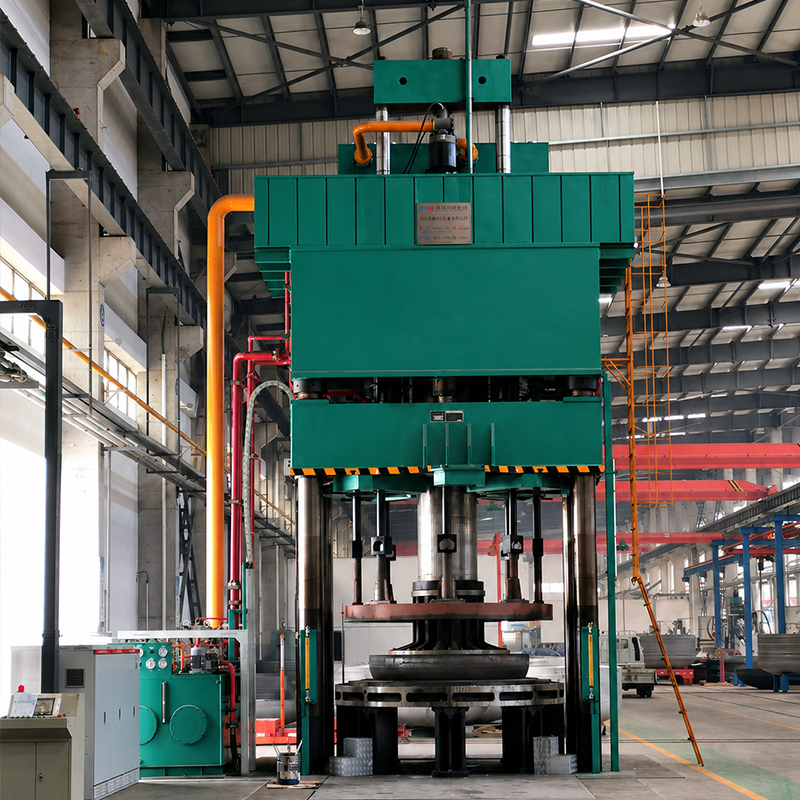

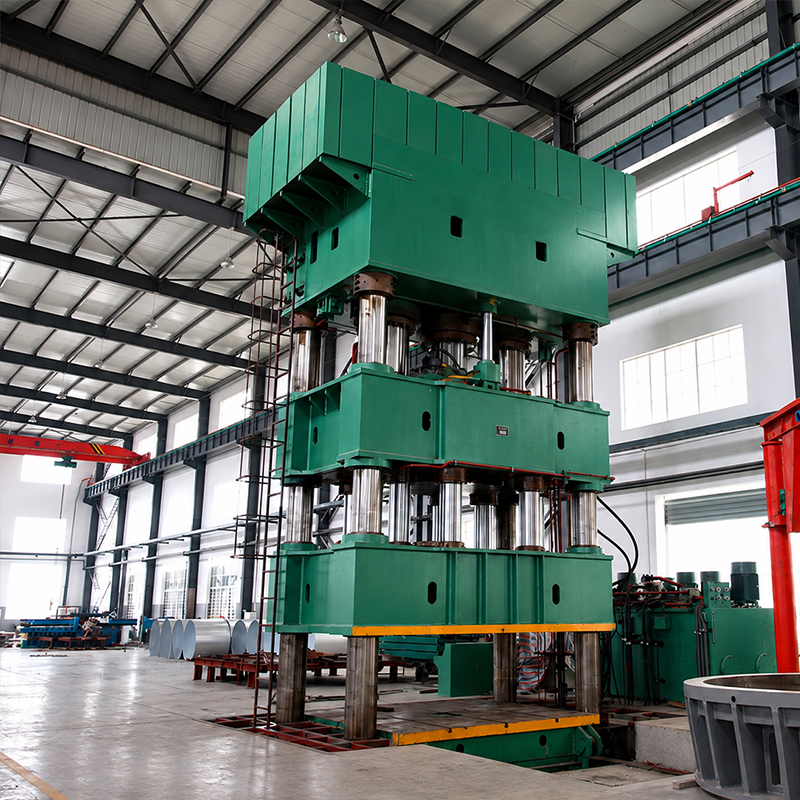

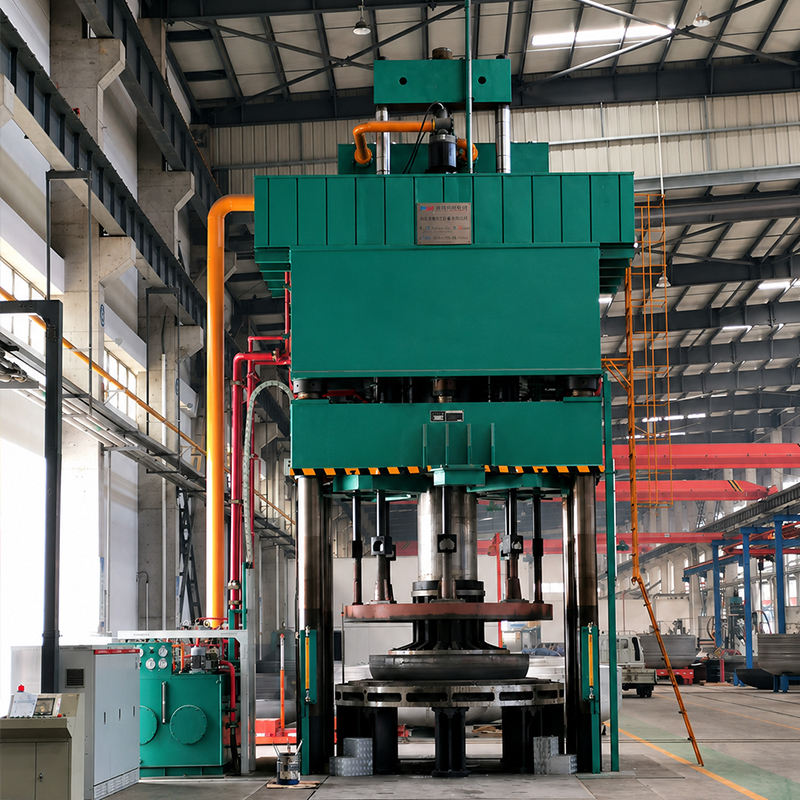

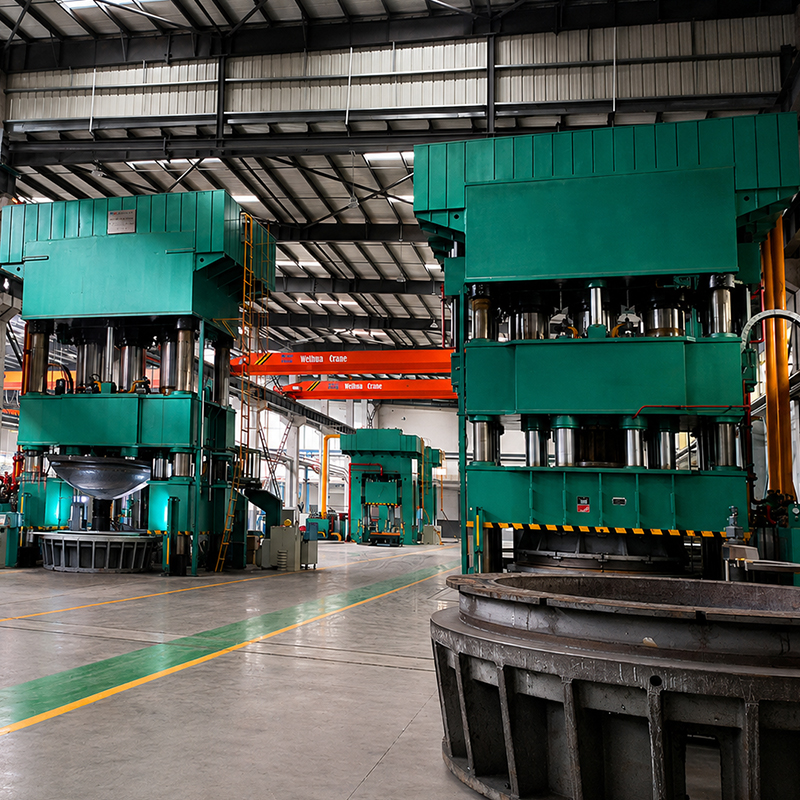

YQ28 Series Double-Action Hydraulic Press for Sheet Metal Drawing

Share to:

YQ28 Series Double-Action Hydraulic Press for Sheet Metal Drawing

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ28

Product Specifications

Result Showcase

Performance Features

◆ Computer-optimized structural design; the machine frame utilizes either a pre-tensioned tie-rod frame structure or a four-column structure.

◆ The frame-type structure offers high precision and rigidity; it features eight-sided guide rails at the four corners, ensuring high guiding accuracy and strong resistance to off-center loads.

◆ Equipped with a movable bolster to facilitate convenient mold changing.

◆ Integrated mechanical, electrical, and hydraulic safety systems, such as a support circuit for the cylinder's lower chamber and an interlocking circuit between the upper and lower chambers.

◆ The deep-drawing slide and blank-holder slide can be locked together via locating pins to perform single-action operations.

◆ Controlled by an imported PLC for sensitive and reliable operation.

◆ The four-column structure is simple, economical, and practical.

◆ Uses imported sealing elements for the hydraulic cylinder, ensuring high reliability and a long service life.

Description	Unit	YQ27-63	YQ27-100	YQ27-160	YQ27-200	YQ27-315	YQ27-400	YQ27-500	YQ27-630	YQ27-630A	YQ27-800	YQ27-800A	YQ27-1000	YQ27-1250	YQ27-1600	YQ27-2000
Rated Pressure	kN	630	1000	1600	2000	3150	4000	5000	6300	6300	8000	8000	10000	12500	16000	20000
Maximum Liquid Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Maximum Slide Stroke	mm	500	600	700	700	800	800	900	900	900	900	1000	1000	1200	1200	1200
Cushion Pressure	kN	190	400	400	630	1000	1000	1600	2000	2500	2500	3000	3000	4000	4000	5000
Maximum Cushion Stroke	mm	200	200	250	250	300	300	350	350	350	350	350	400	400	400	400
Daylight	mm	1000	1000	1000	1100	1250	1250	1500	1500	1500	1600	1800	1800	1800	1800	1800
Slide Speed – Descent	mm/s	150–180	150–180	100	100	100	150–180	150–180	150–180	150–200	200–250	200–250	200–250	250–300	250–300	250–300
Slide Speed – Pressing	mm/s	12–22	7–14	7–15	7–18	7–12	10–18	9–18	10–20	10–20	11–22	11–22	9–18	10–22	11–23	11–23
Slide Speed – Return	mm/s	100	120	70	70	110	100	150	160	160	180	180	160	200	200	220
Table Size – L-R	mm	580	720	960	920	1150	1400	1400	1500	2800	3000	3600	3000	3800	3500	3800
Table Size – F-B	mm	500	580	800	900	1200	1400	1400	1500	1600	2000	2400	2000	2200	2200	2600
Cushion Size – L-R	mm	380	450	600	760	900	960	960	960	2010	2300	2910	2310	3060	2760	3210
Cushion Size – F-B	mm	380	450	600	660	700	960	960	810	960	1410	1710	1410	1560	1560	2010
Main Motor Power	kW	7.5	7.5	11	15	22	2 × 22	2 × 22	45 + 22	45 + 22	2 × 45	2 × 45	2 × 45	3 × 45	4 × 45	5 × 45
