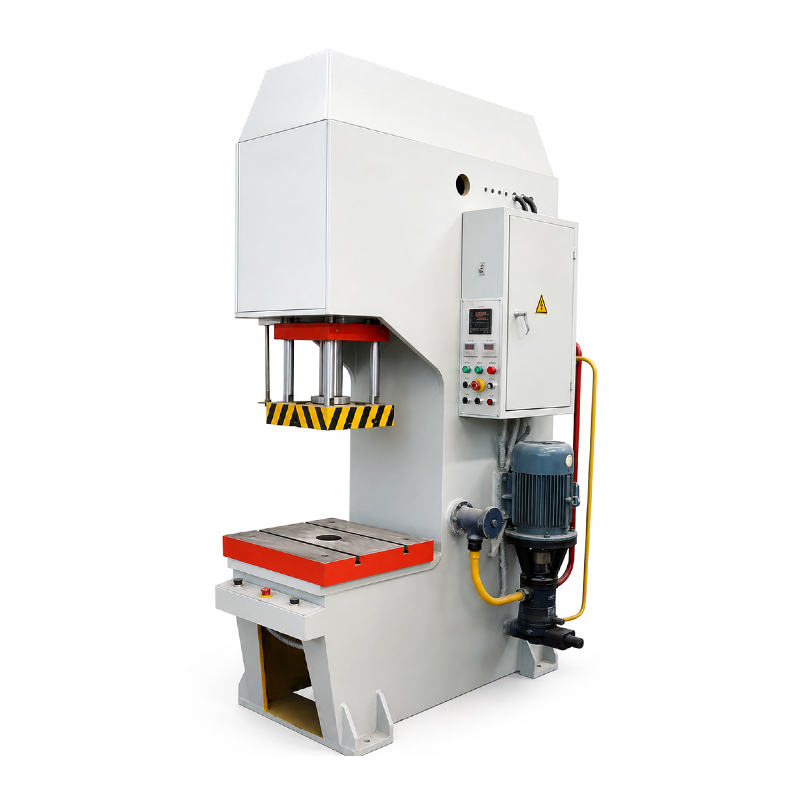

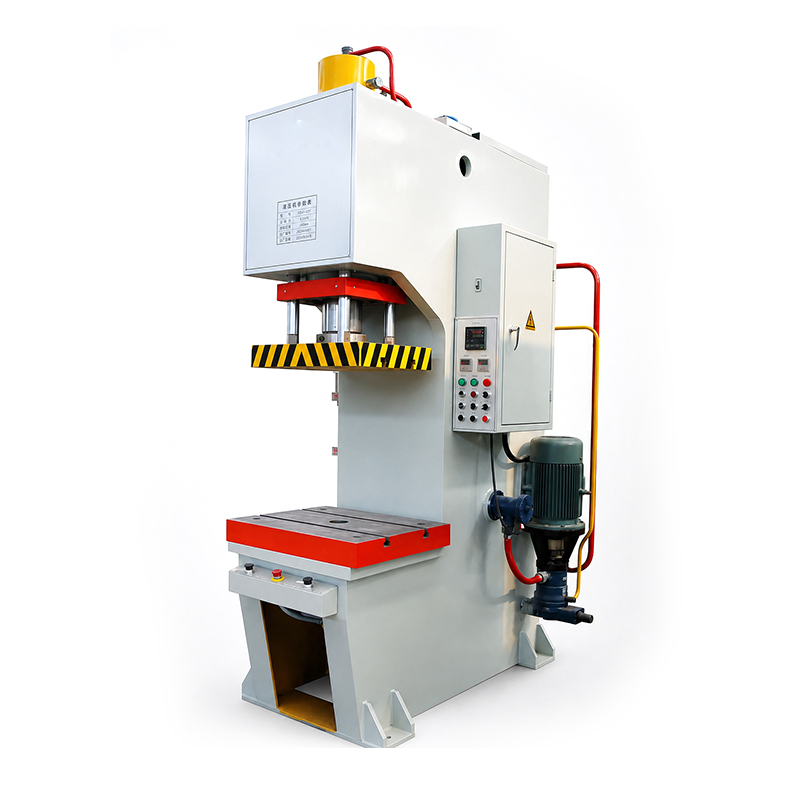

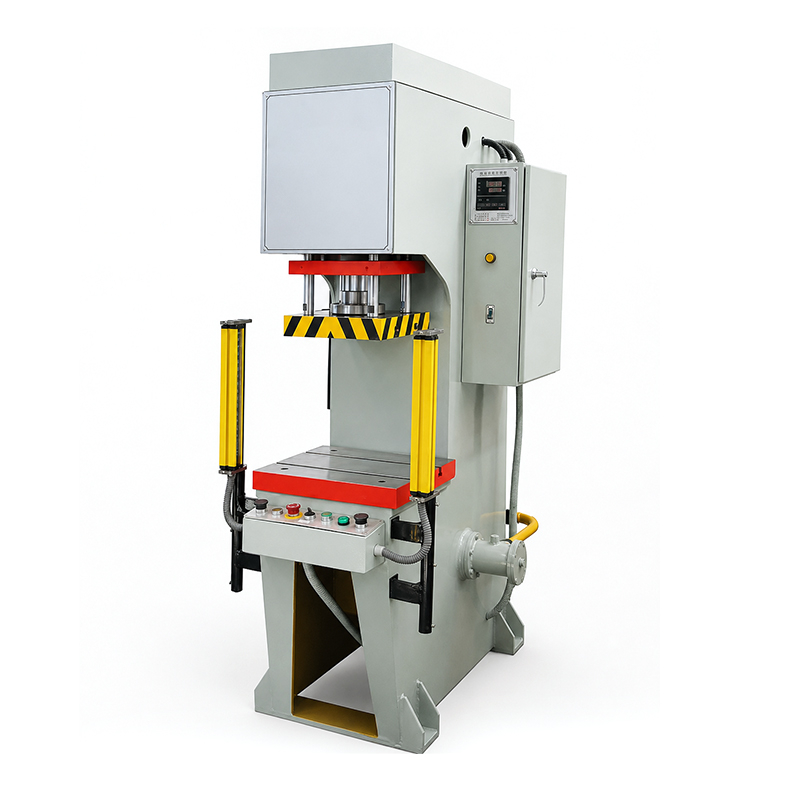

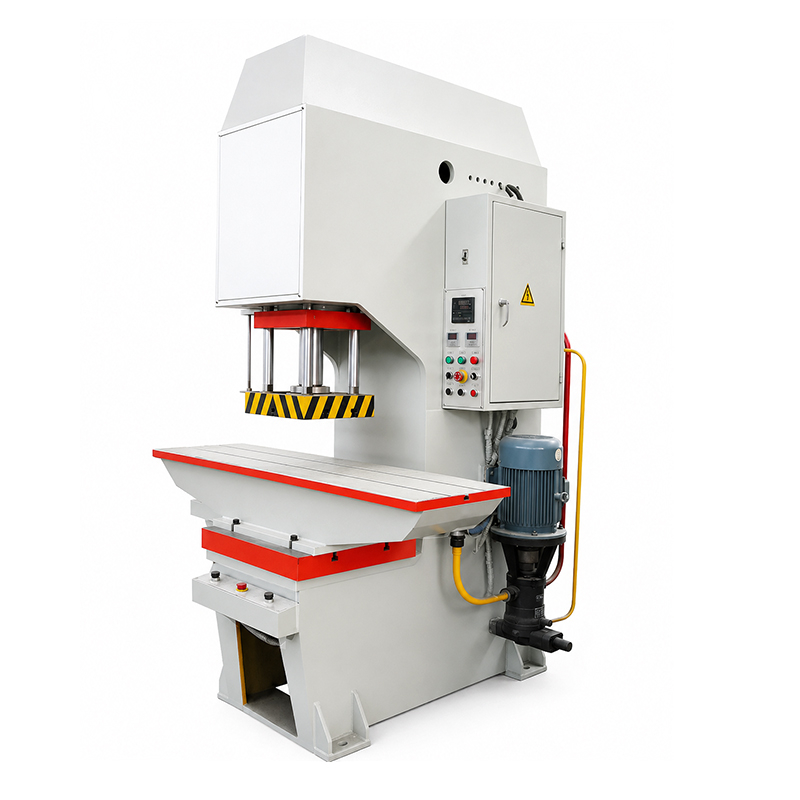

YQ30 Series Single-Column Hydraulic Press

Share to:

YQ30 Series Single-Column Hydraulic Press

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ30

Product Specifications

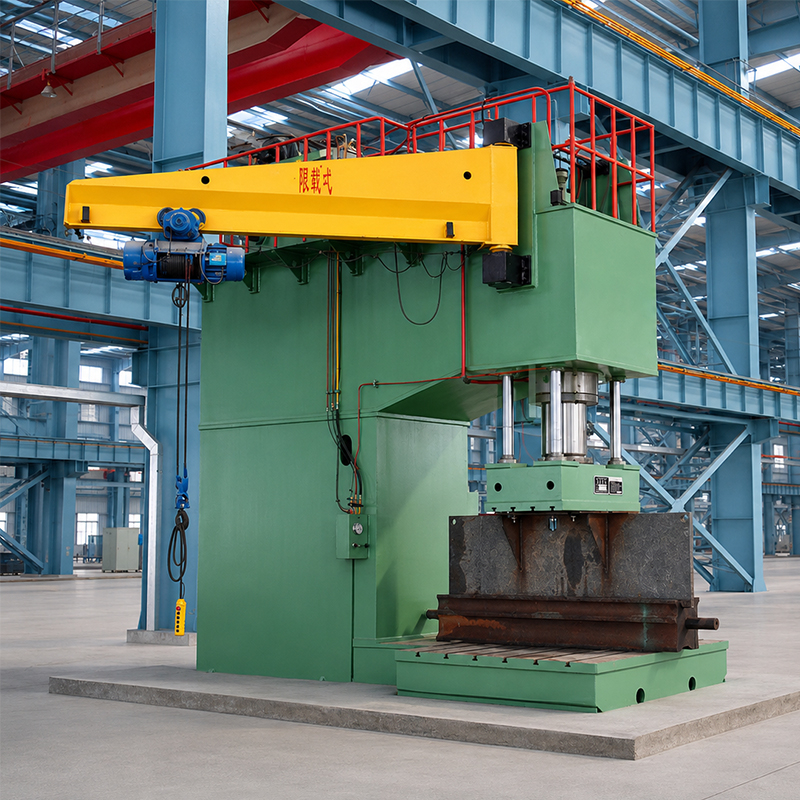

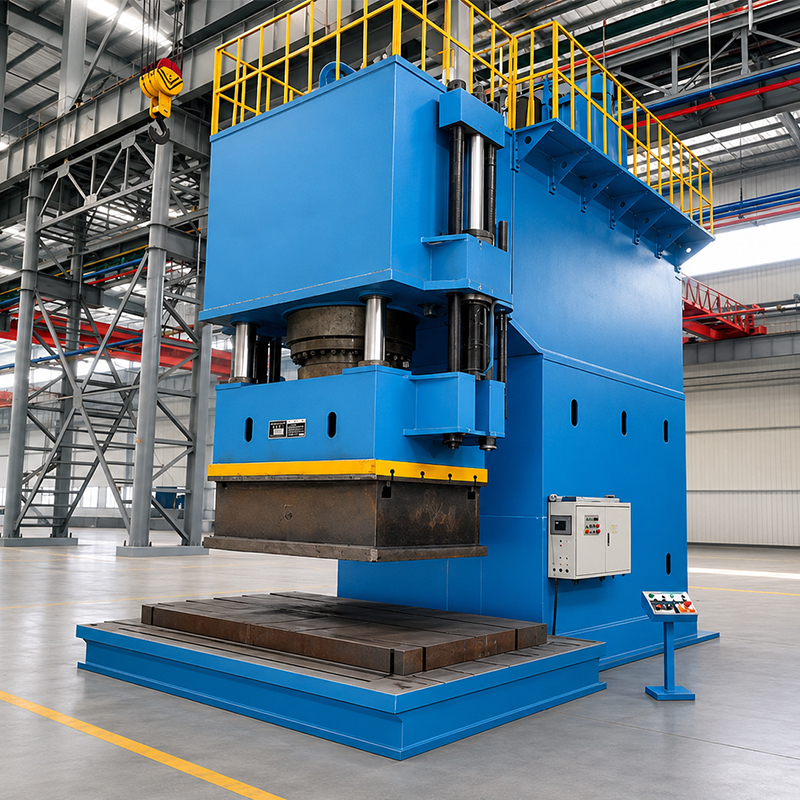

Result Showcase

Performance Features

◆ The machine features a C-type single-arm structure, offering high rigidity, a simple design, and ease of operation.

◆ This series of hydraulic presses is equipped with an independent electrical control system featuring centralized push-button controls; it supports two forming processes: fixed-stroke and fixed-pressure operation.

◆ The hydraulic system utilizes an integrated cartridge valve system, ensuring responsive and reliable operation, minimal shock, easy maintenance, and a long service life.

Description	Unit	YQ30-6.3	YQ30-10	YQ30-16	YQ30-25	YQ30-40	YQ30-63	YQ30-100	YQ30-160	YQ30-200	YQ30-315	YQ30-400	YQ30-500	YQ30-630	YQ30-800
Rated Pressure	kN	63	100	160	250	400	630	1000	1600	2000	3150	4000	5000	6300	8000
Maximum Liquid Pressure	MPa	8	12.5	20	16	25	25	25	25	25	25	25	25	25	25
Maximum Slide Stroke	mm	250	250	400	400	400	500	600	700	700	800	800	900	900	900
Daylight	mm	400	400	500	630	630	750	800	900	1000	1100	1250	1300	1500	1500
Throat Depth	mm	200	200	250	350	350	320	400	420	450	800	1500	1500	1500	1500
Slide Speed – Descent	mm/s	/	/	/	160	160	120	100	80	80	80	80	80	80	80
Slide Speed – Pressing	mm/s	25–28	25–28	25–28	20–35	13–35	11–22	7–15	6–15	7–18	7–11	5–9	8–15	6–12	5–10
Slide Speed – Return	mm/s	55	55	55	120	120	100	120	75	75	60	55	75	60	45
Table Size – L-R	mm	440	440	500	580	700	710	800	900	900	1500	2000	2500	2500	3000
Table Size – F-B	mm	380	380	450	570	570	600	700	800	900	1500	1800	2000	200	2400
Table Height Above Floor	mm	700	700	710	710	710	810	800	900	900	400	400	400	400	400
Dimension of Dropping Hole	mm	/	/	/	Φ100	Φ100	Φ100	/	/	/	/	/	/	/	/
Main Motor Power	kW	3	3	4	5.5	5.5	7.5	7.5	11	15	22	22	2 × 22	2 × 22	2 × 22
