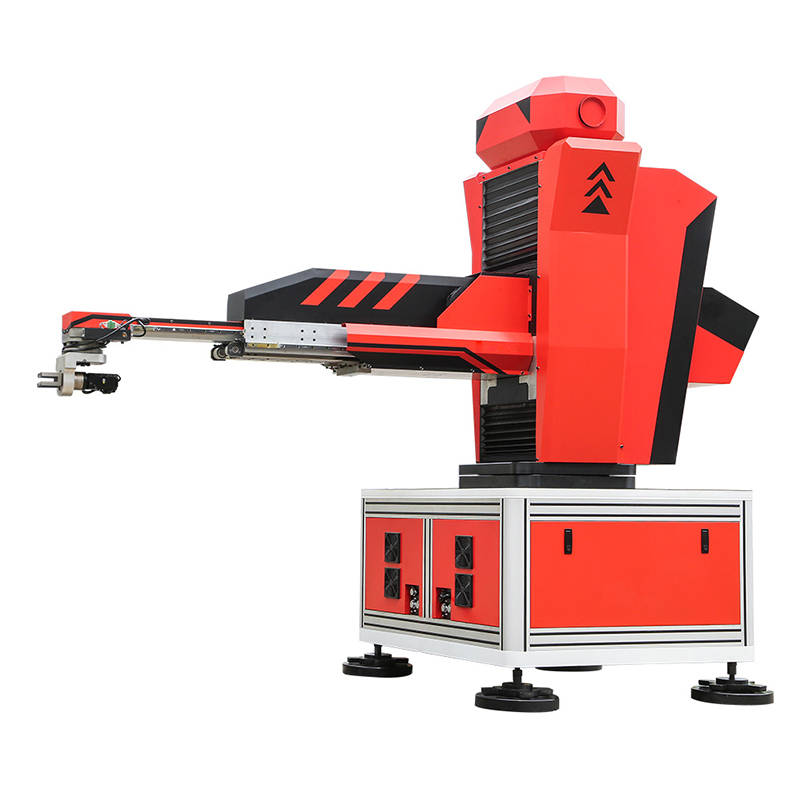

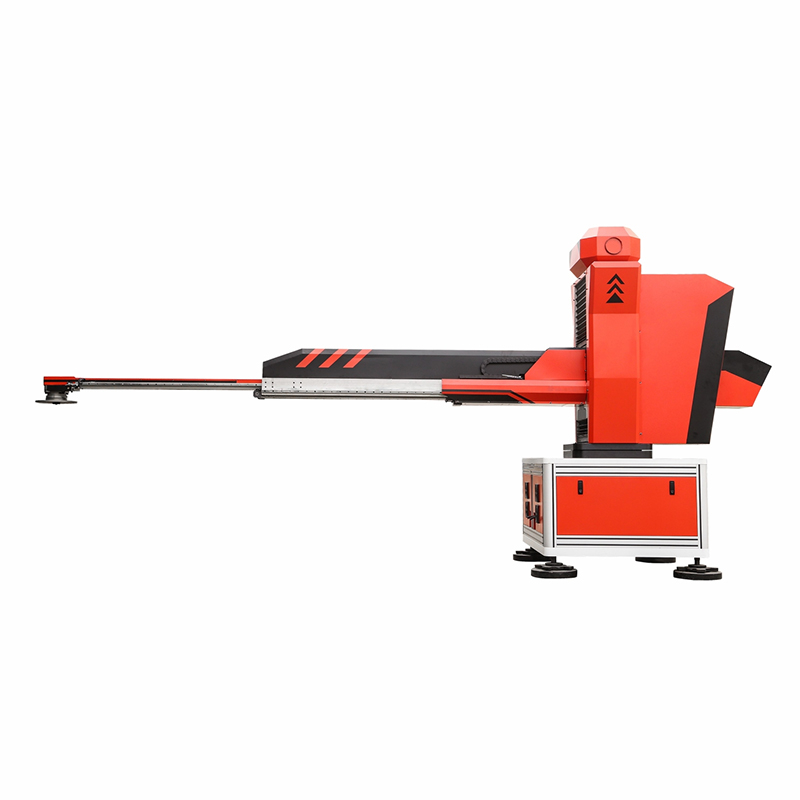

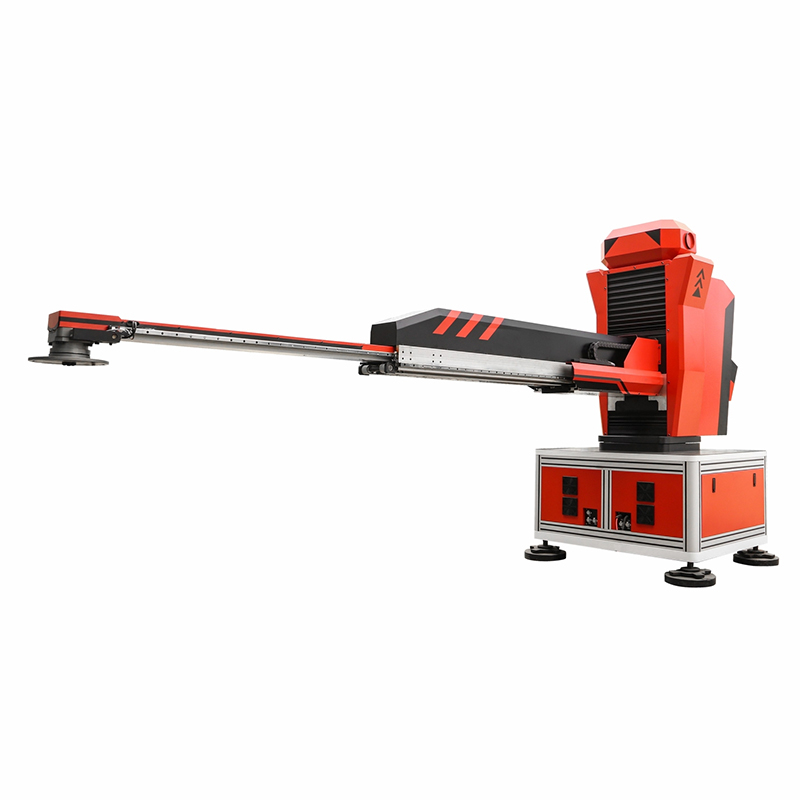

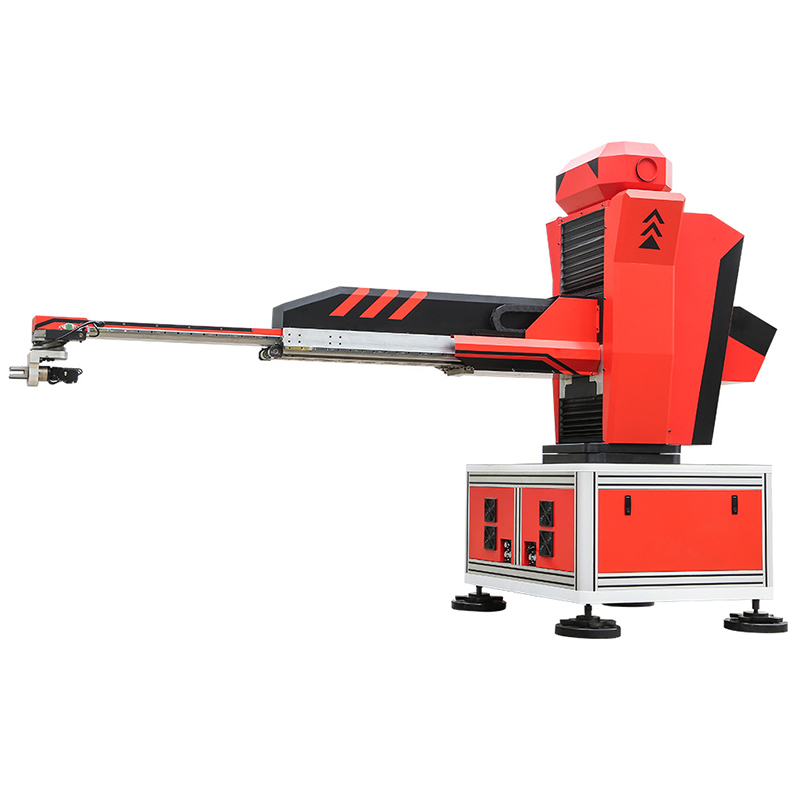

20KG Swing arm stamping manipulator BB-Z-MD-4000-20-4/5

Share to:

20KG Swing arm stamping manipulator BB-Z-MD-4000-20-4/5

- High-strength robotic arm structure design.
- Heavy-duty gripping capacity.
- Swing arm types are equipped with an independent air source, no interference with the on-site air source, and enhance the operation stability of the robotic arm.

Availability:

Quantity:



Inquire Add to Basket

Model:
BB-Z-MD-4000-20-4/5

Product Description

Model		BB-Z-MD-4000-20-4/5
Parameter		Unit	Index
Maximum working radius		mm	4000
Minimum working radius		mm	1750
Grip size		mm	≤1500x1500
Centre grip weight		kg	≤20
Maximum SPM		pcs/min	8
Positioning precision		mm	±0.2
Body size (H is variable) (LWH)		mm	2700╳1450╳2500
Body weight		kg	≈2200
Axial travel stroke	Arm swing angle	°	±170
	Arm vertical telescopic stroke (Min grip level)	mm	0～440 (1200)
	Arm horizental telescopic stroke	mm	2250
	Arm turning angel (N/A for 4 axes model)	°	±180
	Suction disc rotating angle	°	±360
