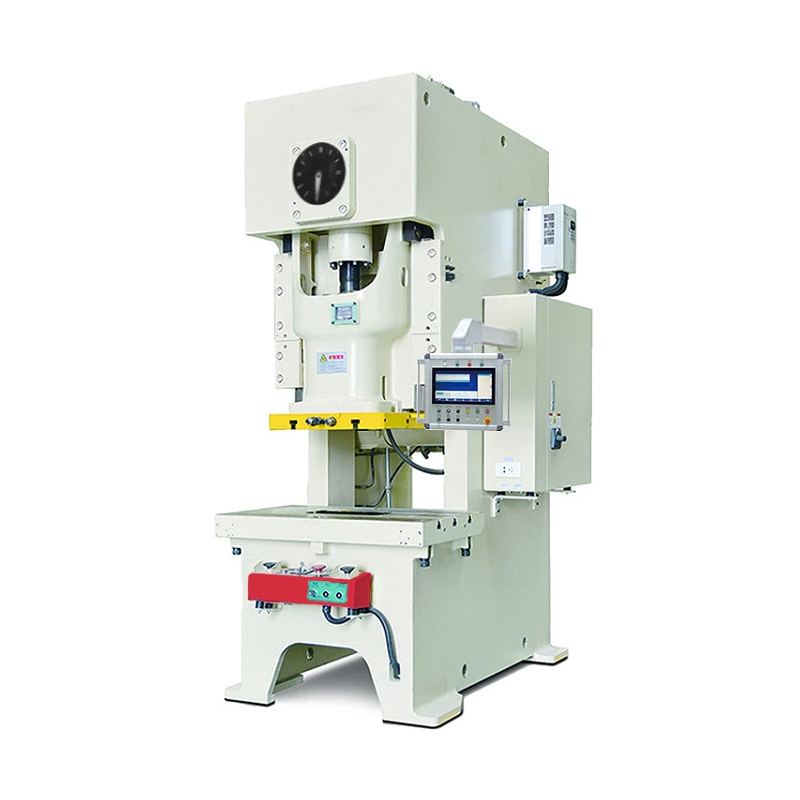

C-Frame Servo Press

Availability:

Quantity:



Inquire Add to Basket

Model:
EC1 Series
Tonnage:
25-315ton

Product Specifications

This servo press is suitable for application in auto parts, consumable electronics and household appliances which can reach perfect forming performance. By combining the progressive die with pendulum curve, productivity can possibly be doubled, which saves over 50% of energy. Furthermore, automated transfer production line can also be added to upgrade the productivity.

Features

More flexibility in applications with different operating modes.
Suitable for high tensile strength steel product.
Better forming capabilities.
Saving energy and environmental friendly.
Perform secondary operations in-die (drilling, tapping, staking).
Better integration with work cells and automation.

Review the specifications of our Y1P Series below, and then contact us for assistance in identifying the right mechanical press for your application.

Technical Datas

Model			EC1-25	EC1-35	EC1-45	EC1-60	EC1-80	EC1-110	EC1-125	EC1-160	EC1-200	EC1-250	EC1-315
Nominal Pressure		kN	250	350	450	600	800	1100	1250	1600	2000	2500	3150
Nominal Pressure Stroke		mm	1.5	2	3	4	5	5	5	6	6	6	6
Stroke of Slide		mm	70	80	100	120	150	180	180	180	200	220	250
Speed		SPM	1-120	1-100	1-90	1-70	1-60	1-55	1-50	1-45	1-40	1-40	1-35
Max Die Height		mm	200	235	265	310	340	360	360	420	460	500	500
Die Height Adjustment		mm	50	55	60	70	80	80	80	100	110	120	120
Slide Area	L-R	mm	680	800	850	900	1000	1150	1150	1250	1400	1500	1500
Slide Area	F-B	mm	300	400	450	500	550	600	600	800	820	850	850
Bolster Area	L-R	mm	300	350	400	500	550	650	650	700	850	950	950
Bolster Area	F-B	mm	230	250	300	400	450	500	500	550	650	700	700
Air Pressure		Mpa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Motor Mode			Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Water Cooling	Water Cooling	Water Cooling	Water Cooling	Water Cooling	Water Cooling
Motor Driver No.			1	1	1	1	1	1	1	1	1	1	1
