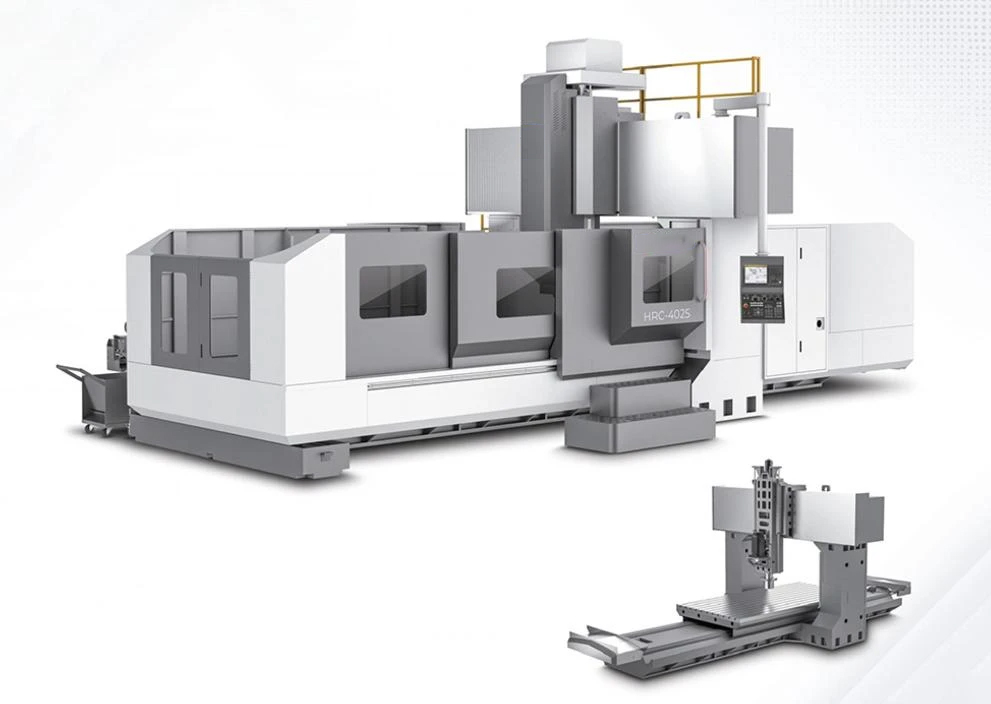

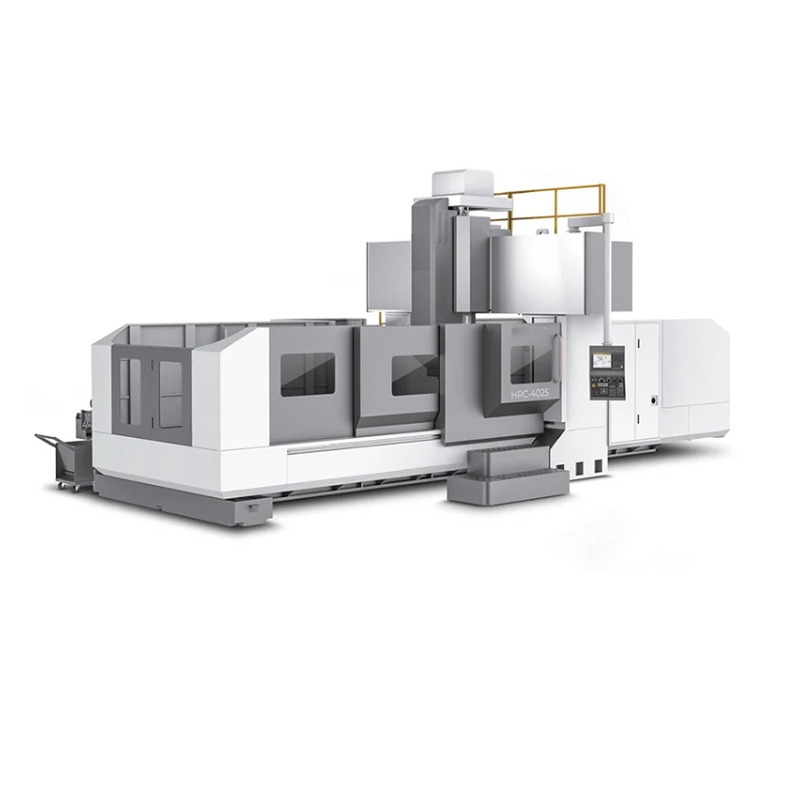

Heavy Duty Gantry Machining Center

Availability:

Quantity:



Inquire Add to Basket

Model:
HRC Series

Product Specifications

Selection and Weighting

◆Column heightincrease:200mm

◆Knife magazine:32pcstool,40pcstool

◆Knife handle:CAT50/DIN50/ISO50

◆Belt spindle:BT50/8000rpm

◆Water outlet fromthe center of the spindle

◆X,Y,Zgrating rulers

◆Automatictool length measuring device

◆Automatictool workpiece measurement device

◆Temperature rise and heatlevel compensation system

◆Side milling head

Features

The crossbeamis integrally castandformed,andthe structuraldesign adopts ahigh rigidity boxshaped structure with a bridge shaped design,which can effectively supportvertical gravityandlateral resistance,and achieve optimalrigidity during cutting.
The minimum distance design betweenthe spindle centerandthe Z-axis slide rail shortensthe cutting force arm.
The Z-axisis equippedwithtwo sets ofhigh-pressure aircylinder counterweights,whichcan synchronously balancethe weight ofthe machine head.

Technical Datas

ITEM		UNIT	HRC-1613B	HRC-2015	HRC-2018	HRC-2518	HRC-3018	HRC3020	HRC-3025	HRC-4025
Control	Controller		GOANWIN/MITSUBISHI/FANUC
	Spindle motor power	kw	18.5	18.5	18.5	18.5	18.5	18.5	22	22
	Three axis motor power	kw	4.5/4.5/4.5	4.5/4.5/4.5	4.5/4.5/4.5	6/4.5/4.5B	6/4.5/4.5B	6/4.5/4.5	9/5.5/5.5	9/5.5/5.5
	Z-axis counterweight method		Nitrogen	Nitrogen	Nitrogen	Nitrogen	Nitrogen	Nitrogen	Nitrogen	Nitrogen
Stroke	X-axis travel	mm	1600	2000	2000	2500	3000	3050	3000	4000
	Y-axis travel	mm	1300	1500	1800	1800	1800	2000	2900	2900
	Z-axis travel	mm	800	800	800	800	800	880	1000	1000
	Distance from spindle center to workbench	mm	180-980	180-980	200-1000	200-1000	200-1000	200-1100	300-1300	300-1300
	Gantry width	mm	1400	1520	1850	1850	1850	2000	2550	2550
	Worktop to bottom of gantry	mm	1000	1000	1120	1120	1120	1300	1400	400
Three-axis track	Track design		Two linear guide rails and one hard rail
	Track width	mm	45/45/Z-axis hard rail		55/55/Z-axis hard rail
	Screw diameter		50/50/50	50/50/50	50/50/50	63/50/50	63/50/50	63/63/50	80/63/50	80/63/50
	Screw pitch		10/10/10	10/10/10	12/12/12	12/12/12	12/12/12	12/12/12	16/10/10	6/10/10
Spindle	Spindle style		BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
	Spindle diameter		②190	②190	190	②190	②190	190	190	②190
	Main shaft transmission mode(standard configuration)		Belt-drive
	Main shaft transmission mode(optional)		Gear head	Gear head	Gear head	Gear head	Gear head	Gear head	Gear head	Gear head
	Spindle speed(standard configuration)	rpm	6000	6000	6000	6000	6000	6000	6000	6000
	Spindle speed(optional)	rpm	8000	8000	8000	8000	8000	8000	8000	3000
	Spindle motor	N/m	118	118	118	118	118	143	143	143
Feed	XYZ rapid feed	m/min	15/15/15	15/15/15	15/15/15	15/15/15	15/15/15	15/15/15	10/15/15	10/15/15
	Min. setting unit for XYZ axis		0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
	Feed rate	m/min	10	10	6	6	6M	6	6	5
Workbench	Workbench size	mm	700x1200	2100x1200	2200x1500	2700x1500	3200x1500	3100x1700	3000x2100	4000x2100
	T-shaped groove(width*number)	mm	7-18-150	7-18-150	10-22-150	10-22-150	10-22-150	7-22-180	11-22-180	11-22-180
	Max. payload	kg	3000	4000	7000	8000	10000	10000	10000	12000
Accuracy	Positioning accuracy(JIS 6338)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Accuracy	Repetitive accuracy(JIS 6338)	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Automatic tool change system	Tool magazine capacity		Disk 24T
	Knife handle type		BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
	Tool change time(T-T)	sec	3.8	3.8	3.8	3.8	3.8	3.8	3.8	3.8
	Max.tool diameter/adjacent tool diameter		0125/0225	0125/0225	0125/0225	0125/0225	0125/0225	0125/0225	0125/0225	0125/0225
	Max. tool length	mm	400	400	400	400	400	400	400	400
	Max. tool weight	kg	15	15	15	15	15	15	15	15
Other	Mechanical net weight(approximately)	kg	13000	1600	20000	22000	25000	26000	38000	46000
	Cutting coolant capacity	L	400	400	400	400	40	400	400	400
	Lubricating oil tank capacity	L	4L	4	4	4	4	4L	4	4
	Electricity demand	KVA	40	40	40	45	45	50	60	60
	Pressure demand of air pressure unit	Par	6	6	6	6	6	6	6	6
	External dimensions(LxWxH)	mm	4800x2600x3200	6000x2800x3200	6000x3100x3200	7700x3100x3200	8800x3100x3200	8800x3286x4160	11000x4600x4600	12500x4600x4600
