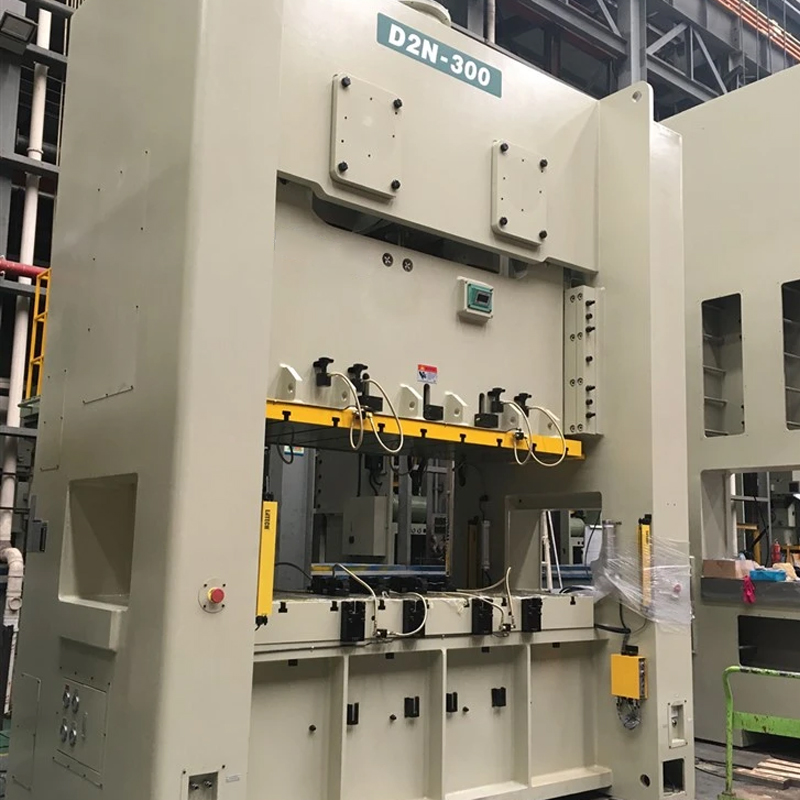

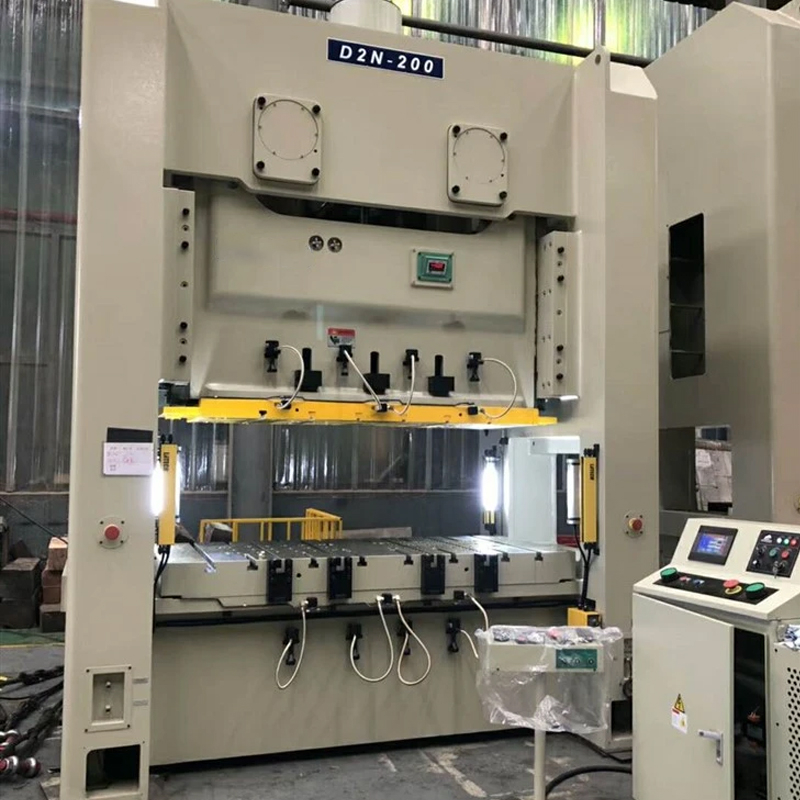

H-Frame Double Crank Press

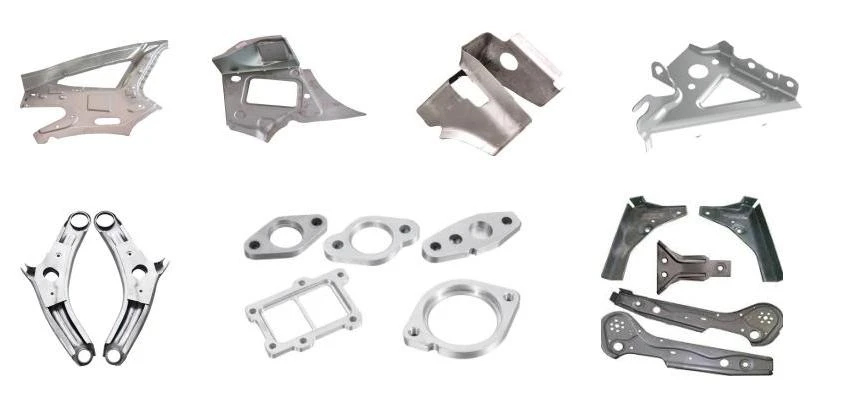

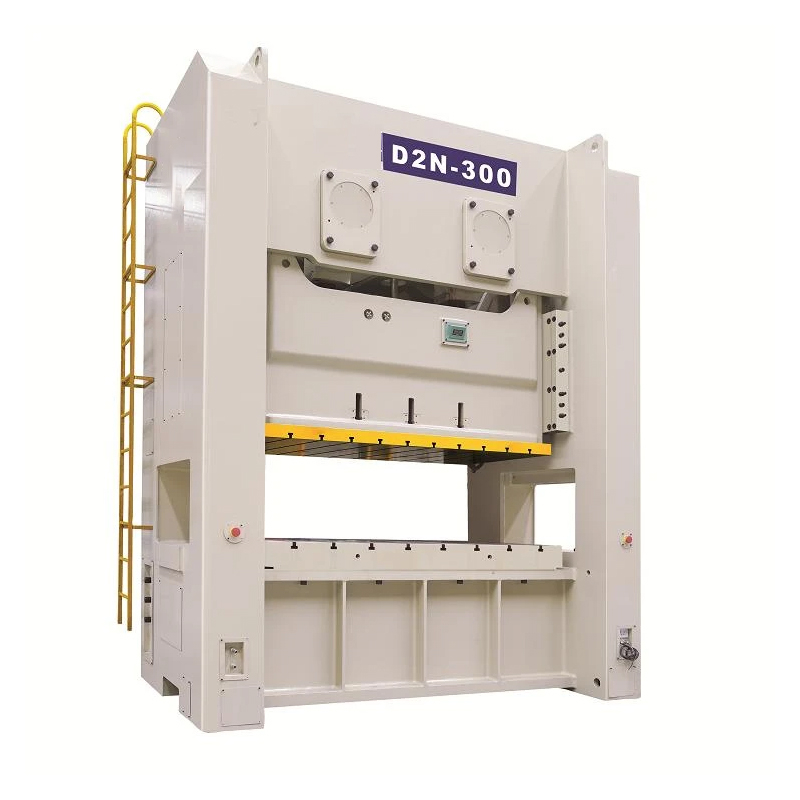

This two-point straight side press is designed for stamping relatively long, narrow parts at high single-stroking rates or in continuous mode, using either blanks or coil stock, or running progressive dies that need longer bed area to accommodate long dies with multiple stations. The D2N double crank mechanical press offers an extra-wide, centered, six-point, full-length box gib type. It provides a large die area at a very economical price, while still providing the rigidity and low deflection characteristics of a traditional straight side press.

• Heavy, One-Piece Welded Steel Frame Is Fully Stress Relieved And Designed To Resist Deflection, Providing More Accurate Stampings And Longer Die Life.

• High Precision Six-Side Or Eight-Side Long Slide Guide.

• Editable Speed Of The Slider During Operation, High Product Qualification Rate, And Production Efficiency;

• High Torque, Low Noise Clutch And Brake.

• Energy-Saving And Environmentally Friendly, Ultra-Low Power Consumption.

• High Accuracy Transmission Gears And High Rigidity Crank Ensure Press Long Life And Accuracy.

• Forced Lubrication System With Default Monitor Ensures The Operation Reliability.

• User-Friendly Design And Electric Control System Providing High Automation Compatibility.

• Fast Response Hydraulic Overload Protection System Relieves The Pressure Of The Tonnage Overload , Stopping The Press Immediately And Protecting The Press And Dies From Damage.

• Shock-Absorbing Pad.

Review the specifications of our Y1P Series below, and then contact us for assistance in identifying the right mechanical press for your application.
