YQ12 and YQ13 Series Forging Hydraulic Presses

Share to:

YQ12 and YQ13 Series Forging Hydraulic Presses

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ12 & YQ13

Product Specifications

Result Showcase

Performance Features

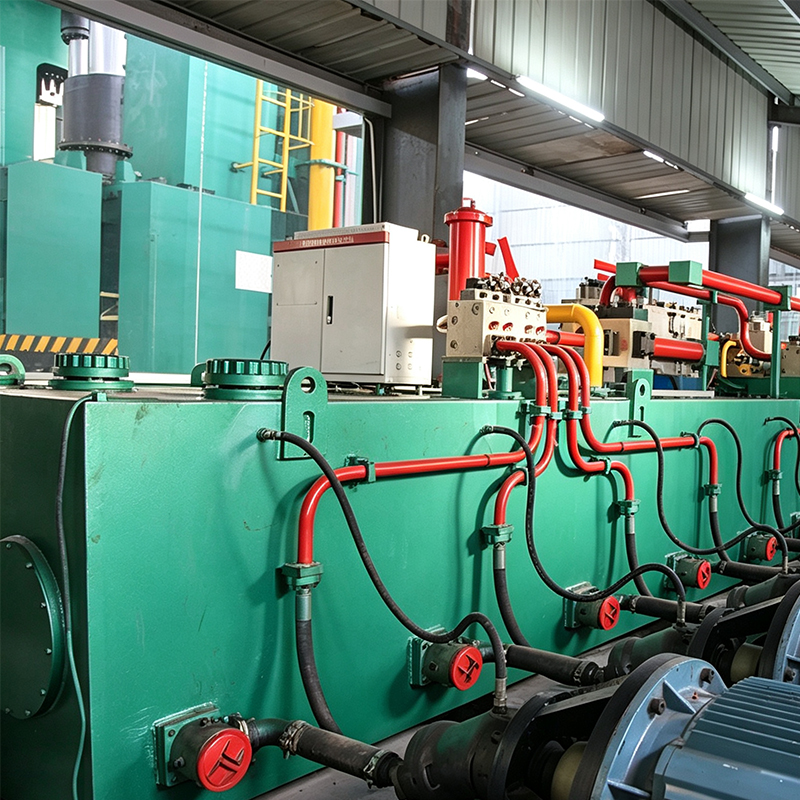

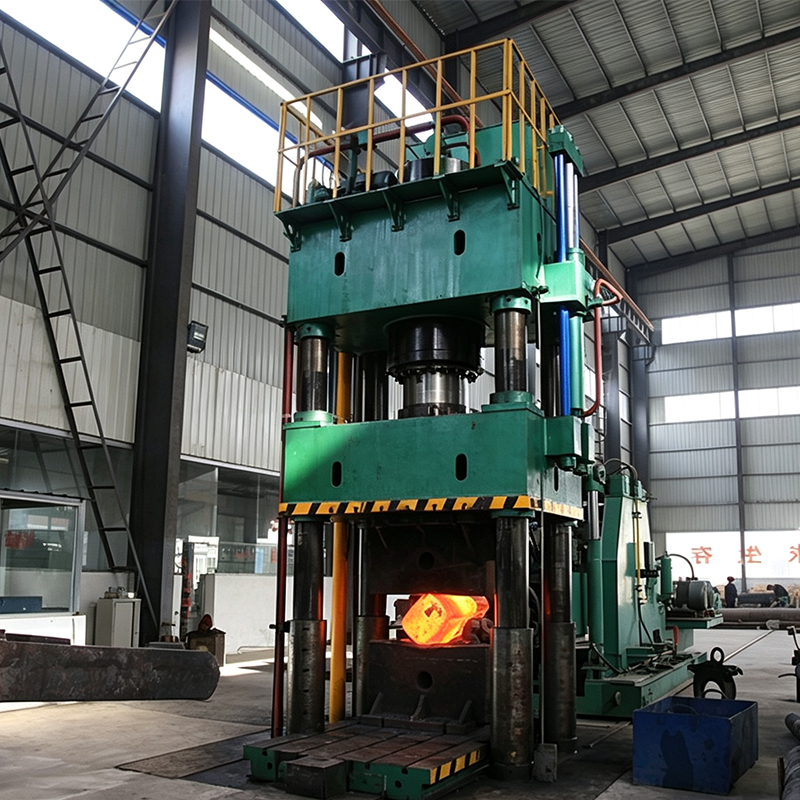

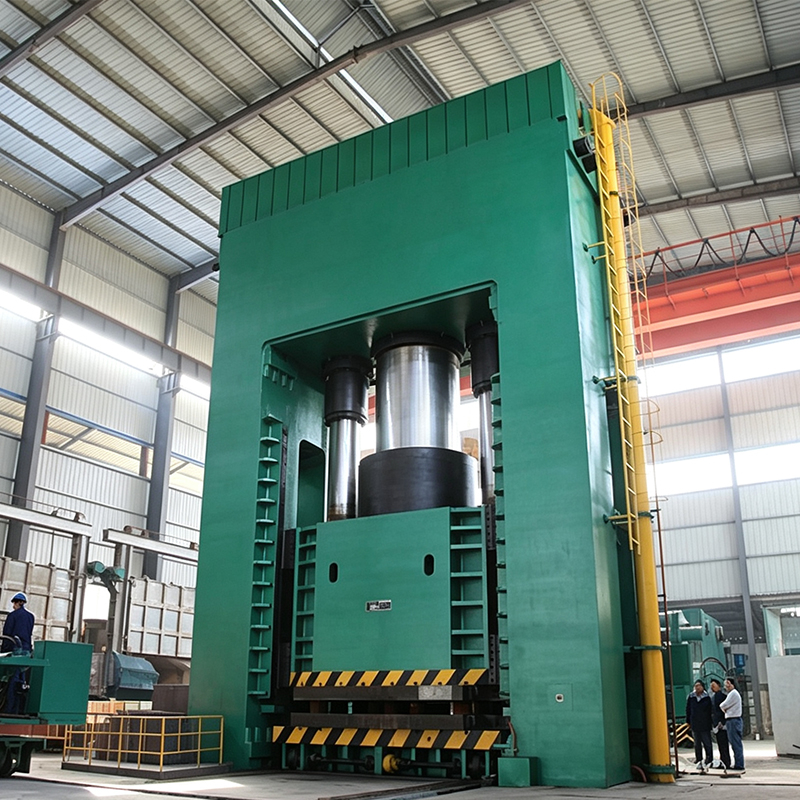

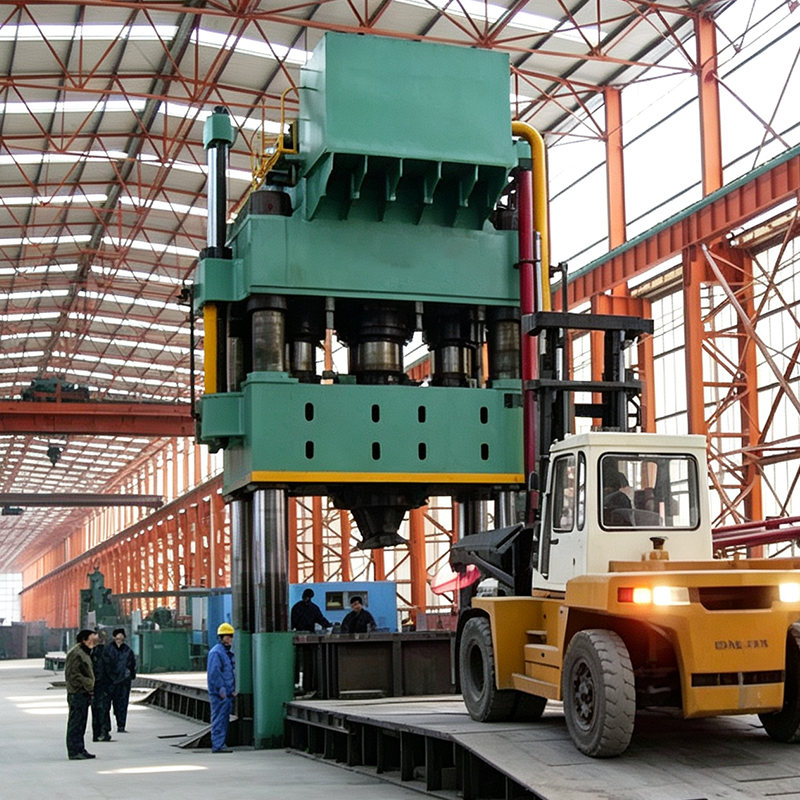

Forging hydraulic presses are primarily used for various open-die forging processes—such as drawing out, upsetting, finishing, punching, and cutting—utilizing upper and lower anvils along with simple, general-purpose tools; they can also perform closed-die forging operations. These presses feature direct oil-pump drive systems using hydraulic oil as the working medium and are available in configurations such as four-column up-acting, two-column down-acting, and four-column down-acting designs, equipped with either a movable worktable or a lateral anvil-shifting mechanism.

Description	Unit	YQ13-500	YQ13-800	YQ13-1000	YQ13-1600	YQ13-2000	YQ13-3150	YQ13-4000	YQ12-500	YQ12-800	YQ12-1600	YQ12-3150
Installation Type		Upright Type	Upright Type	Upright Type	Upright Type	Upright Type	Upright Type	Upright Type	Pull-down Type	Pull-down Type	Pull-down Type	Pull-down Type
Column Structure		Four-column	Four-column	Four-column	Four-column	Four-column	Four-column	Four-column	Two-column	Two-column	Four-column	Four-column
Nominal Force	kN	5000	8000	10000	16000	20000	31500	40000	5000	8000	16000	31500
Return Force	kN	500	800	1000	1250	1250	4000	4000	800	1000	1600	2000
Maximum Hydraulic Working Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25
Stroke	mm	1200	1200	1500	1600	1800	2000	1500	1200	1200	1600	2000
Daylight	mm	2000	2000	2500	2800	3200	3800	2300	2000	2000	3000	4000
Effective Worktable Size – L-R	mm	1600	1600	1800	2100	2500	3300	2200	1000	—	2150	3000
Effective Worktable Size – F-B	mm	1600	1600	1800	2000	2000	2700	2200	3000	—	2000	2600
Moving Crossbeam Speed – Idle Stroke	mm/s	300	300	300	300	300	300	350	300	300	300	300
Moving Crossbeam Speed – Working	mm/s	50	50	50	50	50	50	40	50	50	50	50
Moving Crossbeam Speed – Return	mm/s	300	300	300	300	300	300	350	300	300	300	300
Motor Power	kW	3 × 90	4 × 90	5 × 90	9 × 90	10 × 90	16 × 90	18 × 90	3 × 90	4 × 90	9 × 90	16 × 90
Optional Movable Worktable – Size	mm	2500 × 1600	2500 × 1600	4000 × 1600	4000 × 2000	5000 × 2200	6000 × 3800	3600 × 1400	—	3200 × 1200	5000 × 1800	6000 × 2200
Optional Movable Worktable – Travel	mm	900	900	2200	2000	3000	4400	1700	—	2000	3000	3400
Optional Movable Worktable – Operating Force	kN	300	400	500	630	630	800	800	—	200	500	800
Optional Transverse Anvil Shifting Device – Size	mm	—	—	—	—	—	—	—	3000 × 600	3200 × 600	4250 × 1000	5050 × 1200
Optional Transverse Anvil Shifting Device – Travel	mm	—	—	—	—	—	—	—	2000	3200	4200	5000
Optional Transverse Anvil Shifting Device – Operating Force	kN	—	—	—	—	—	—	—	250	250	250	250
Maximum Forgeable Steel Ingot – Drawing-out		2	4	6	10	20	45	55	2	4	10	45
Maximum Forgeable Steel Ingot – Upsetting		1	2	3	4	14	24	30	1	2	4	24
