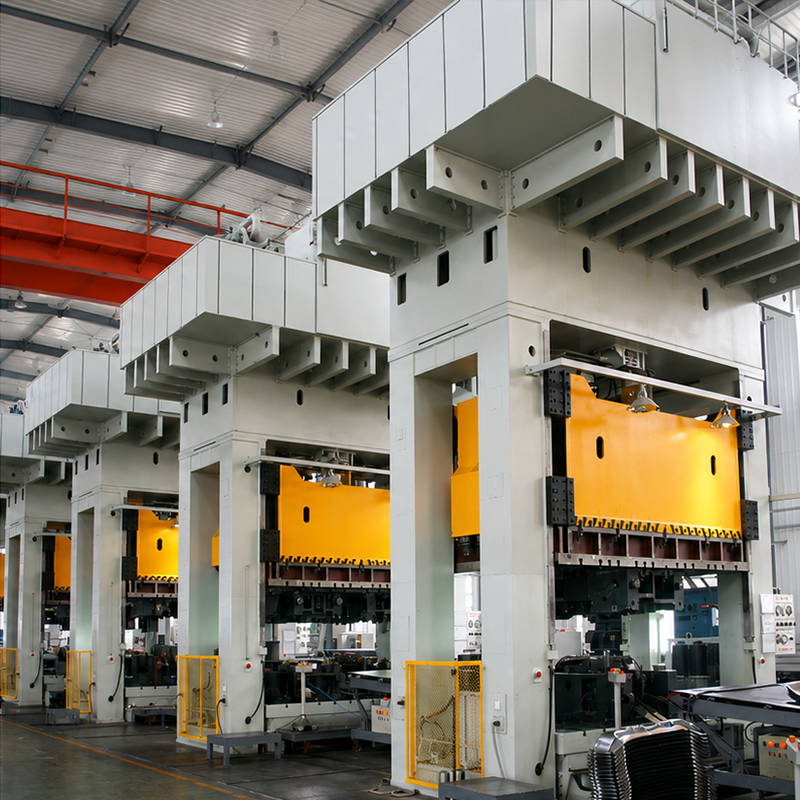

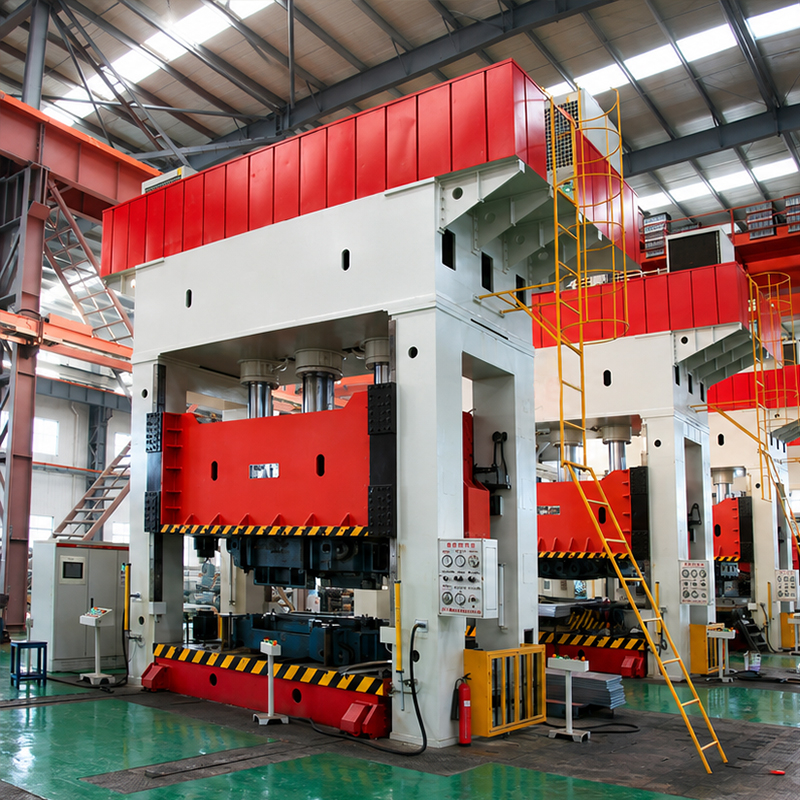

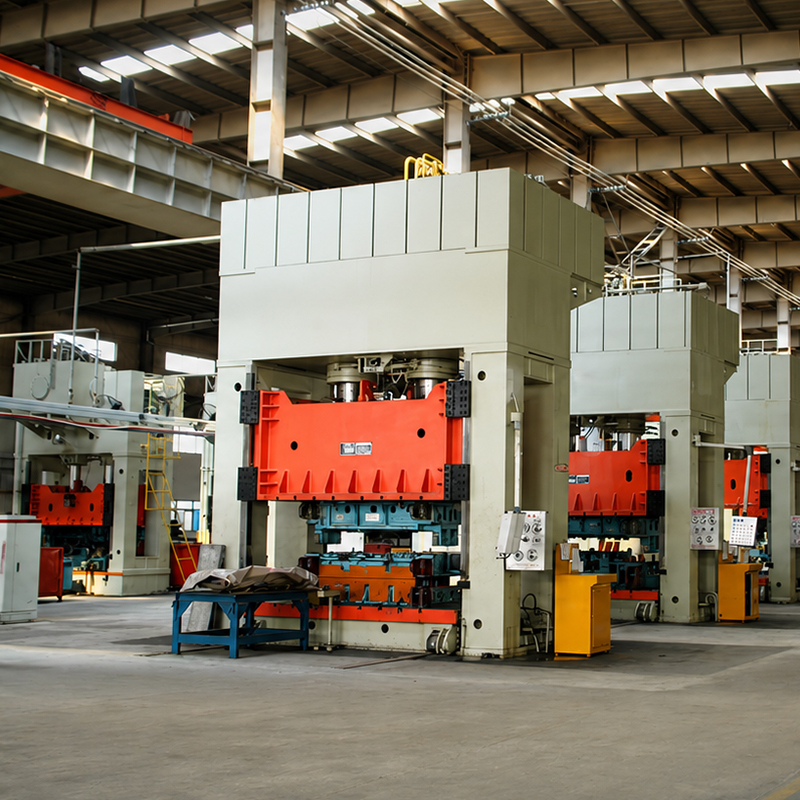

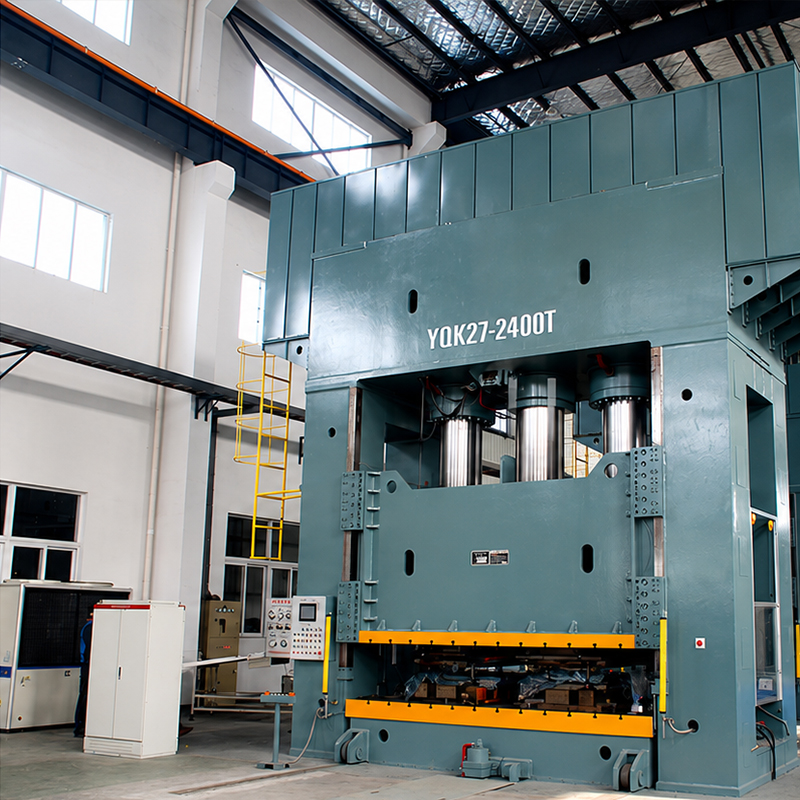

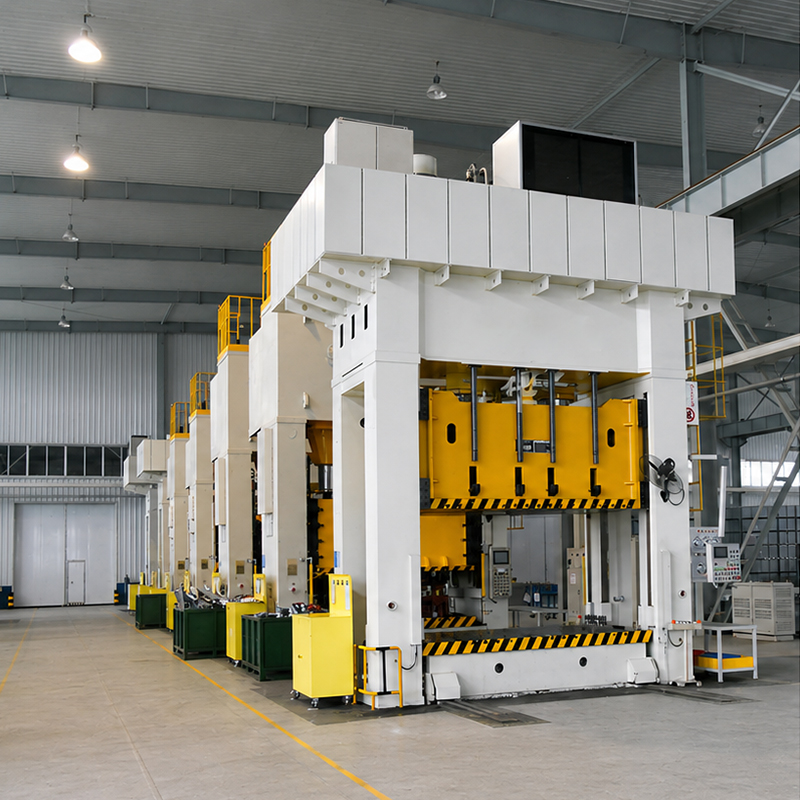

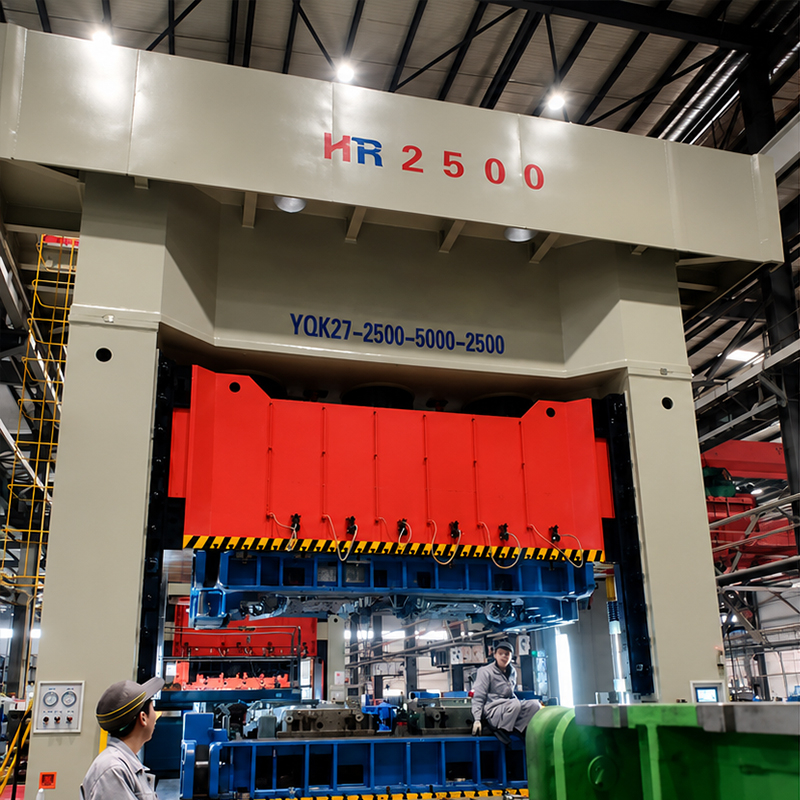

YQK27 Series Frame-Type Single-Action Hydraulic Press for Sheet Metal Stamping

Share to:

YQK27 Series Frame-Type Single-Action Hydraulic Press for Sheet Metal Stamping

Availability:

Quantity:



Inquire Add to Basket

Model:
YQK27

Product Specifications

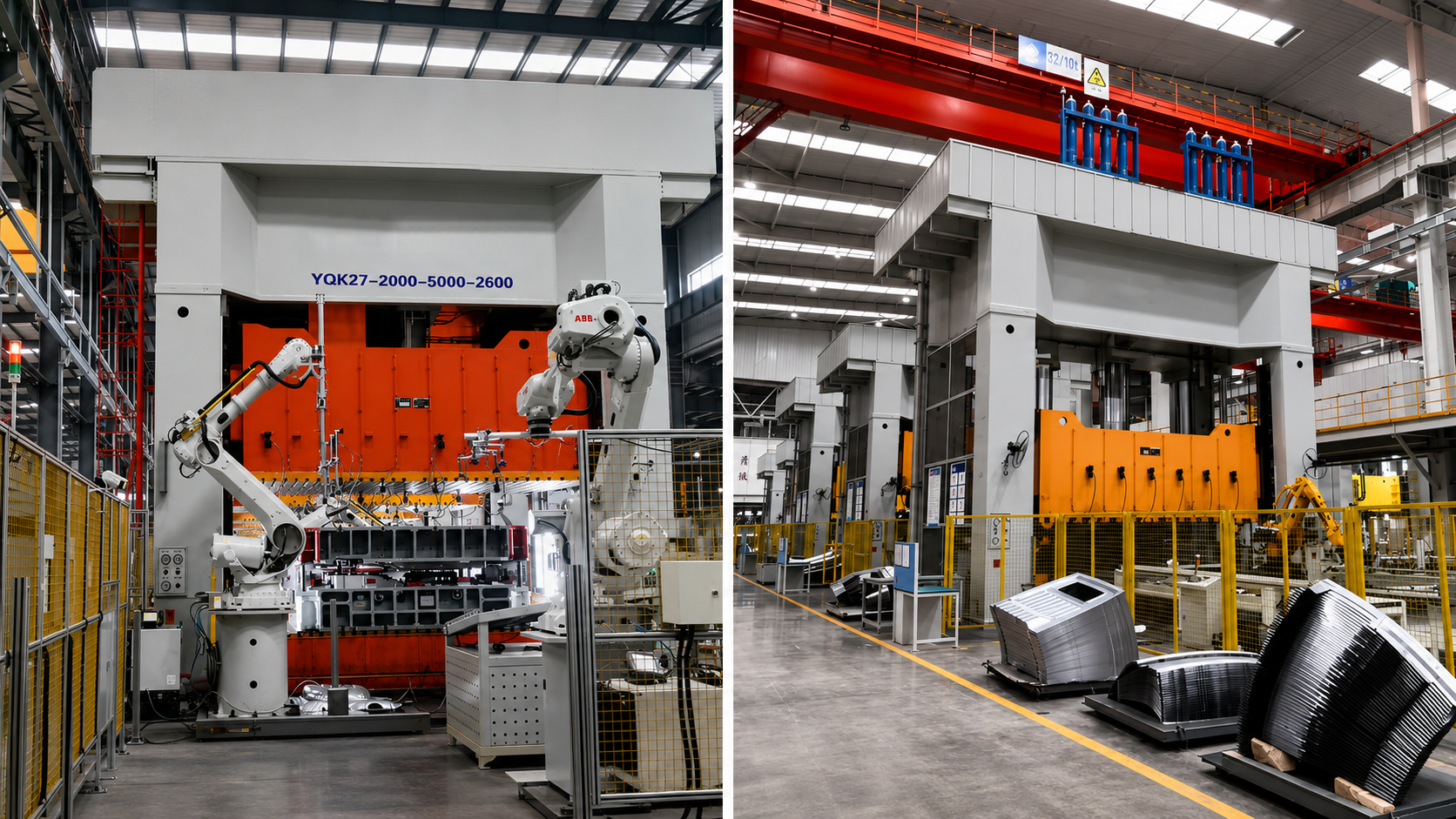

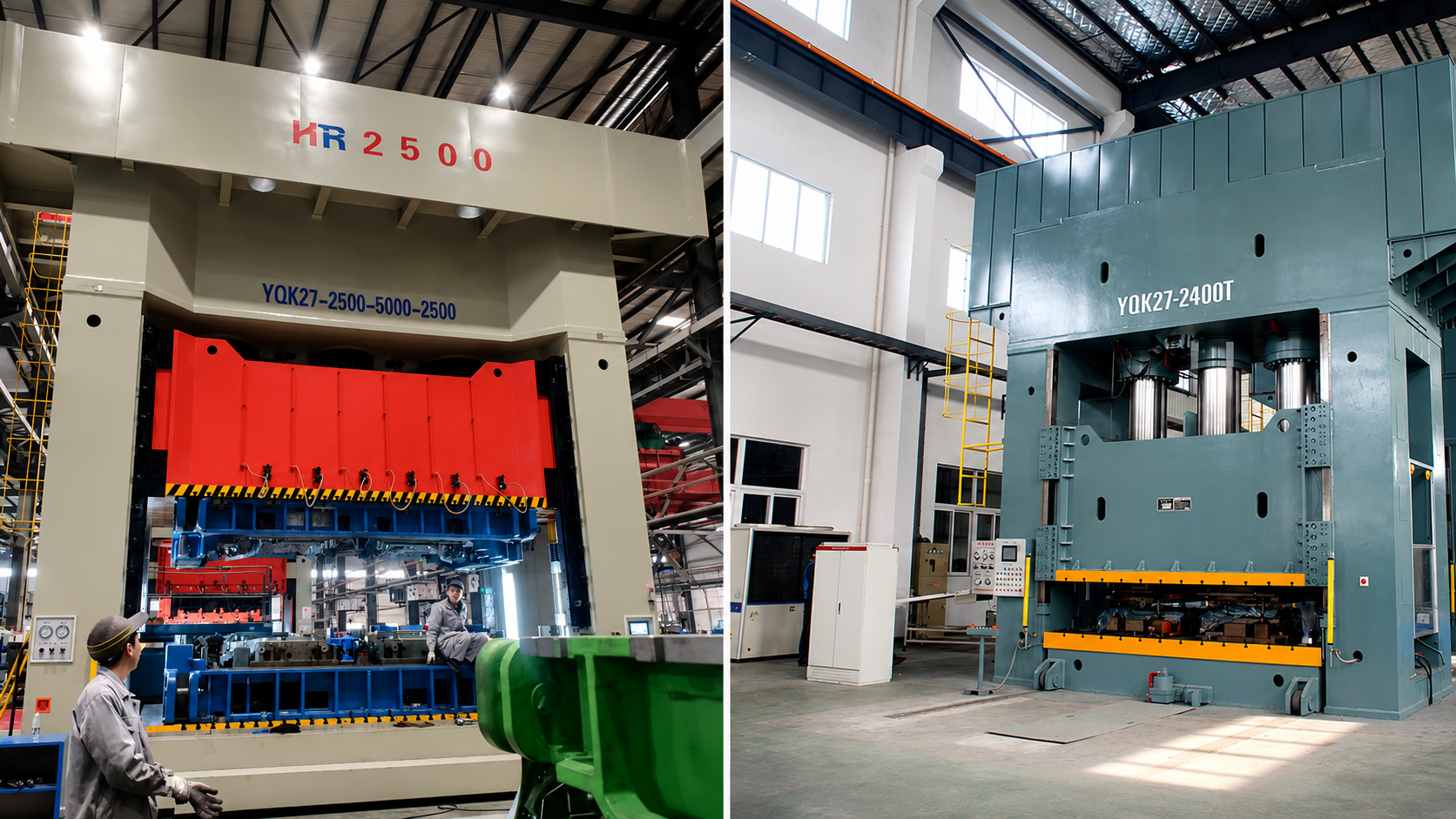

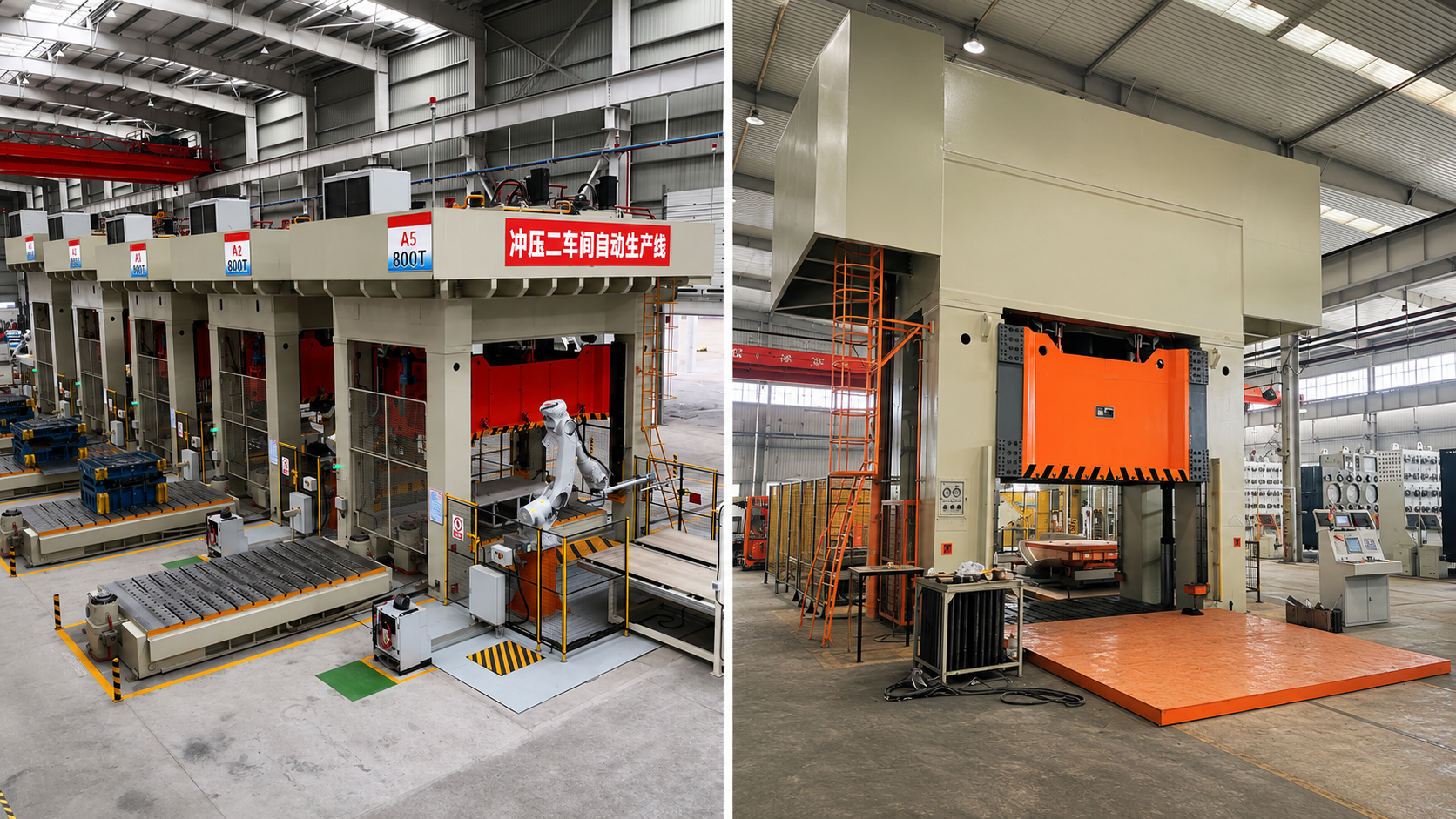

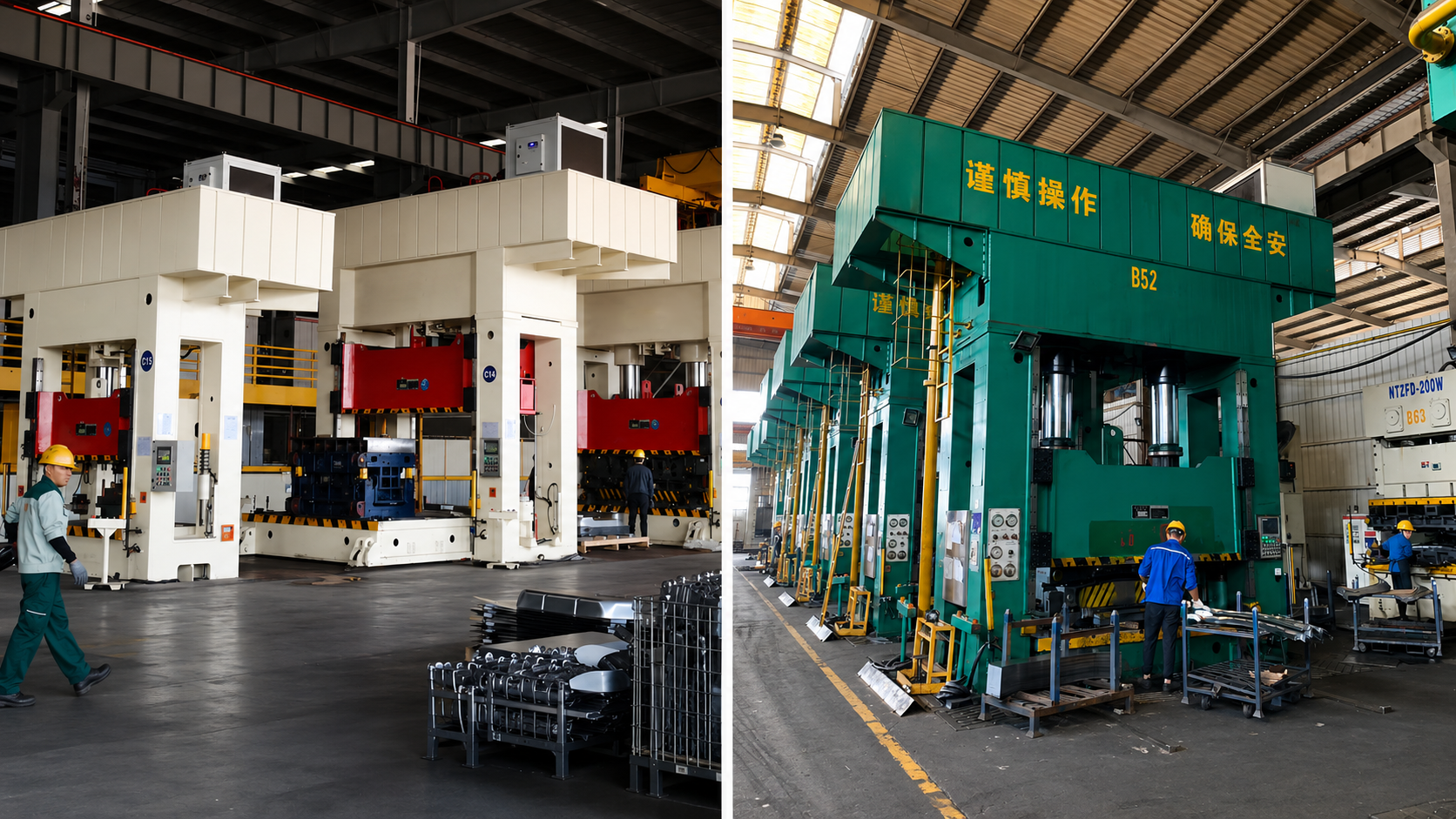

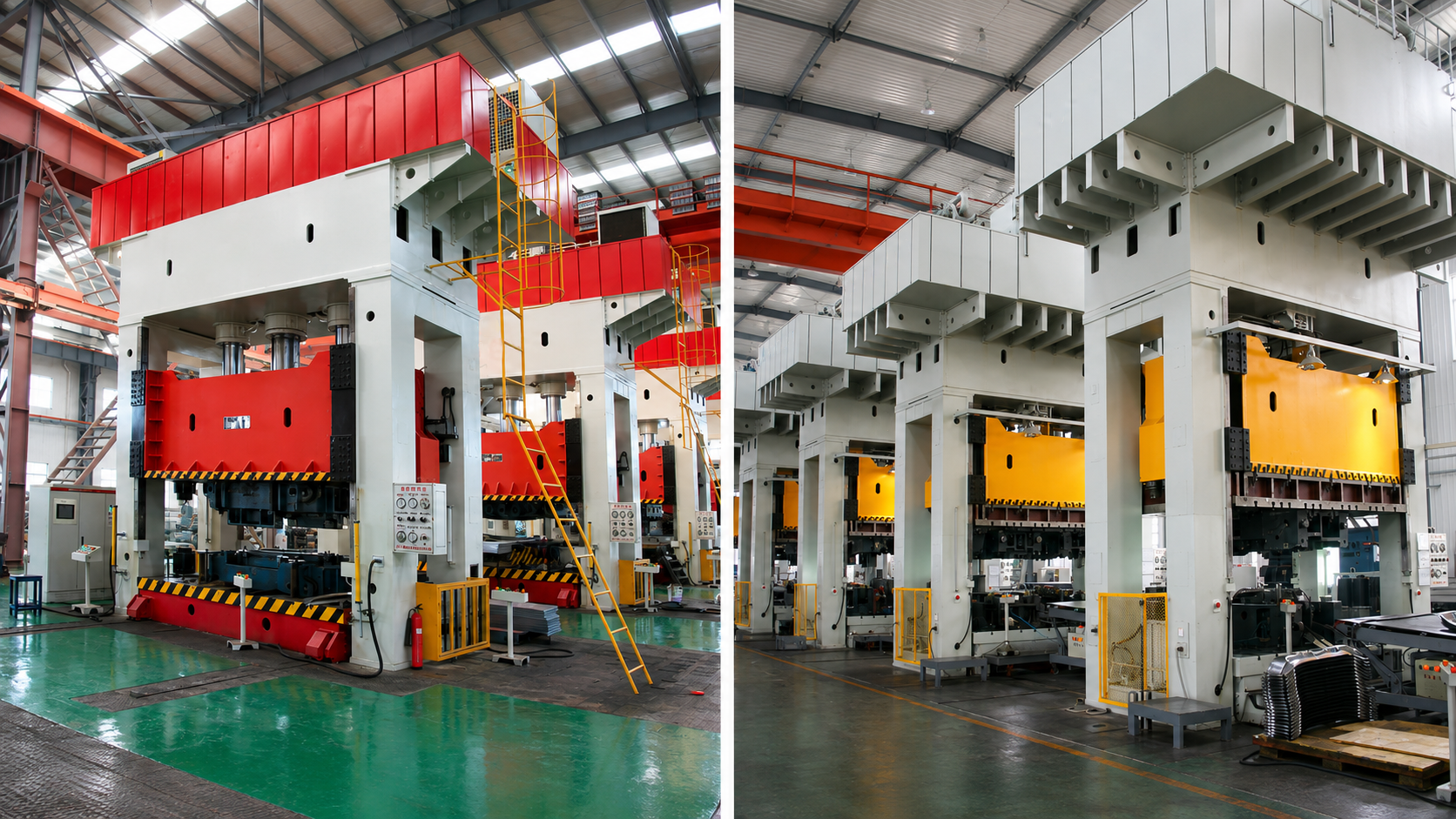

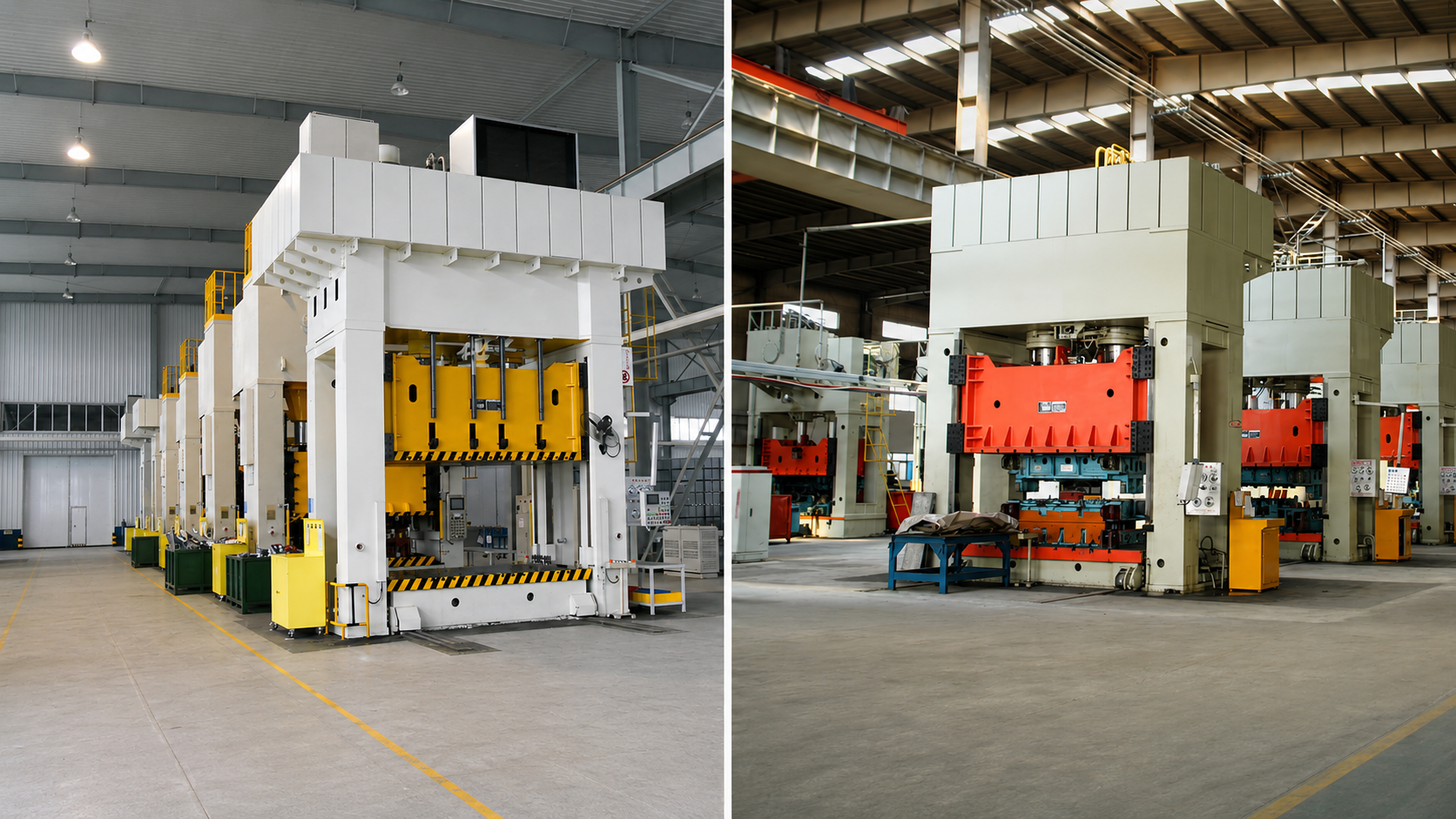

Result Showcase

Performance Features

◆ The machine frame features a computer-optimized, all-steel welded structure that has undergone high-temperature tempering treatment, ensuring excellent precision retention.

◆ The hydraulic control system utilizes an integrated cartridge valve manifold, offering high reliability, high flow capacity, minimal internal leakage, and a long service life; the high level of system integration reduces potential leakage points associated with connecting piping.

◆ Centralized push-button control supports two operating modes: adjustment and semi-automatic (single-cycle stroke control or single-cycle pressure control).

◆ It employs an eight-sided guide rail system (four corners, eight faces) ensuring high guiding precision and strong resistance to off-center loads, complemented by a centralized lubrication system.

◆ New-generation cylinder seals ensure high reliability and extended service life.

◆ Operating parameters—including slide working pressure, as well as stroke ranges for rapid no-load descent and slow working-speed advance—can be adjusted to meet specific process requirements.

◆ A hydraulic cushion is installed beneath the bolster plate, which features ample ejector pin holes; the hydraulic cushion supports three operating modes: drawing, ejection, and non-ejection.

Optional Accessories

◆ Blanking shock-absorption device

◆ Moving bolster

◆ Light curtain safety device

◆ Oil cooling system

◆ Industrial touch-screen display

◆ Ejection/knockout device

◆ Quick mold clamping mechanism

◆ Floating rails and rolling brackets for mold changing

Description	Unit	YQK27-315	YQK27-400	YQK27-500	YQK27-500A	YQK27-630	YQK27-800	YQK27-800A	YQK27-1000	YQK27-1000A	YQK27-1250	YQK27-1250A	YQK27-1600	YQK27-1800	YQK27-2400
Rated Pressure	kN	3150	4000	5000	5000	6300	8000	8000	10000	10000	12500	12500	16000	18000	24000
Maximum Liquid Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Maximum Slide Stroke	mm	800	800	900	1000	900	1000	1200	1000	1200	1200	1400	1400	1500	1500
Cushion Pressure	kN	1000	1600	2000	2500	2500	3000	3500	4000	4000	5000	5000	5000	5500	6000
Maximum Cushion Stroke	mm	300	300	300	350	350	350	400	350	400	400	400	400	450	550
Daylight	mm	1250	1250	1500	1600	1500	1600	1800	1600	1700	1800	2000	2000	2000	2000
Slide Speed - Descent	mm/s	150–200	150–200	150–200	150–200	200–250	200–250	200–250	200–250	250–300	250–300	250–300	250–300	250–300	250–300
Slide Speed - Pressing	mm/s	7–12	10–18	9–18	9–18	10–20	11–22	11–22	11–22	11–22	10–22	10–22	11–23	12–25	11–23
Slide Speed - Return	mm/s	110	100	150	150	160	180	180	200	200	200	180	200	220	220
Table Size - L-R	mm	2600	2400	2400	4000	3000	3600	4500	3000	4000	4500	5000	4500	5000	5000
Table Size - F-B	mm	1500	1400	1400	2200	1500	2400	2500	2000	2200	2500	2500	2300	2800	2500
Cushion Size - L-R	mm	2010	1860	1860	3210	2160	2910	3810	2310	3210	3660	4110	3660	4110	3960
Cushion Size - F-B	mm	950	960	960	1410	960	1710	1710	1260	1410	1710	1710	1560	2010	1710
Main Motor Power	kW	22	2 × 22	45	45	45 + 22	45 × 2	45 × 2	45 × 2 + 22	45 × 2 + 22	3 × 45	3 × 45	45 × 4	45 × 5	6 × 45
