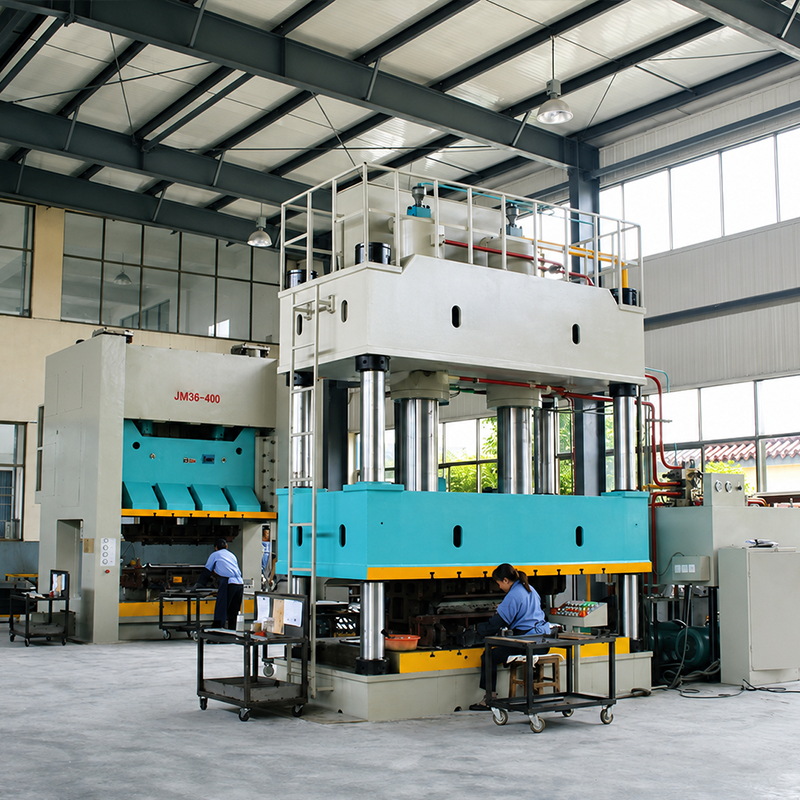

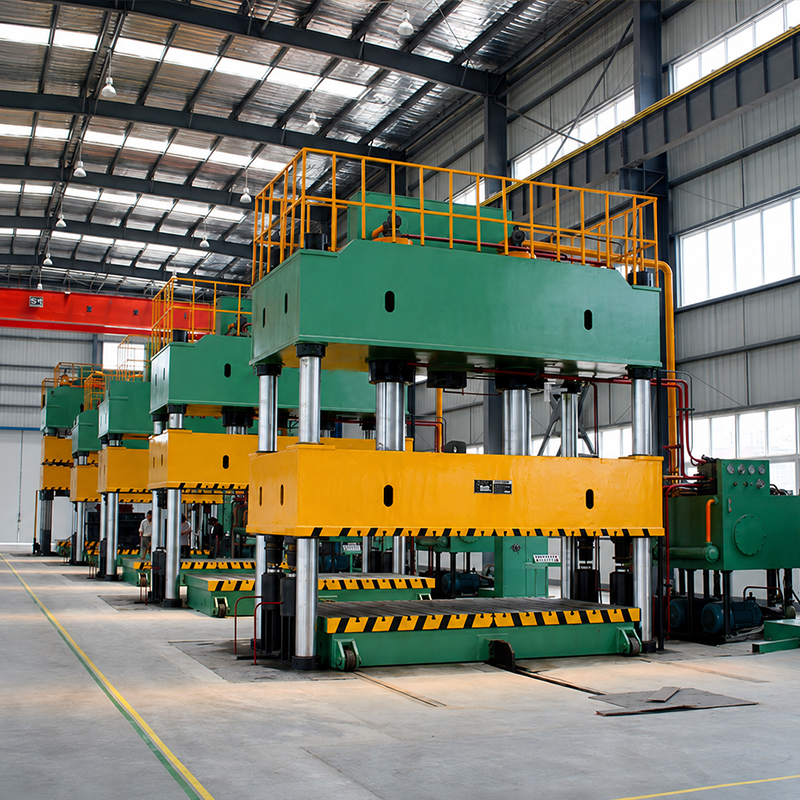

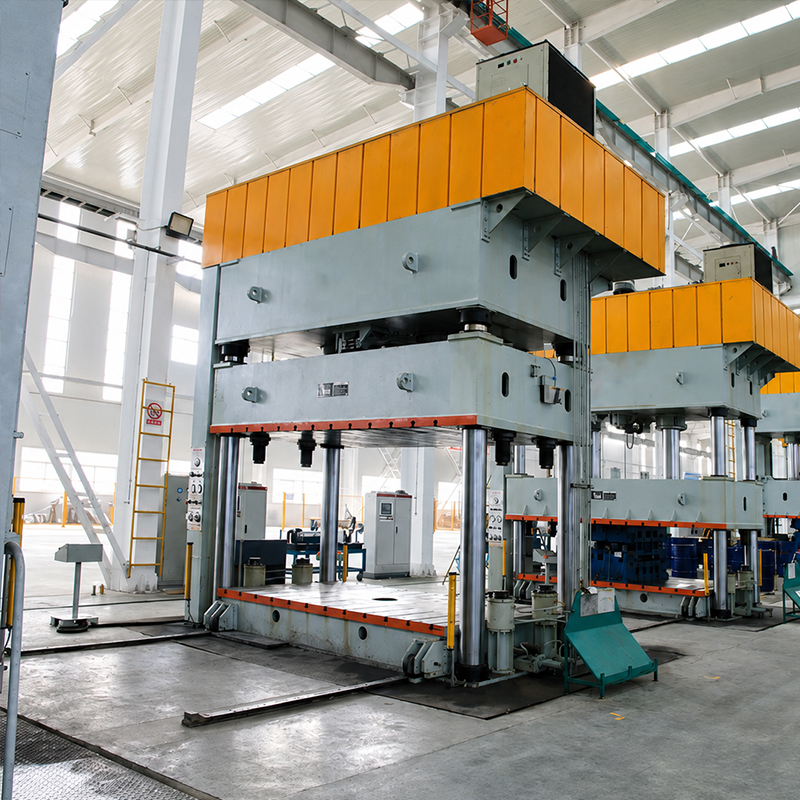

YQ27 Series Four-Column Single-Action Hydraulic Press for Sheet Metal Stamping

Share to:

YQ27 Series Four-Column Single-Action Hydraulic Press for Sheet Metal Stamping

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ27

Product Specifications

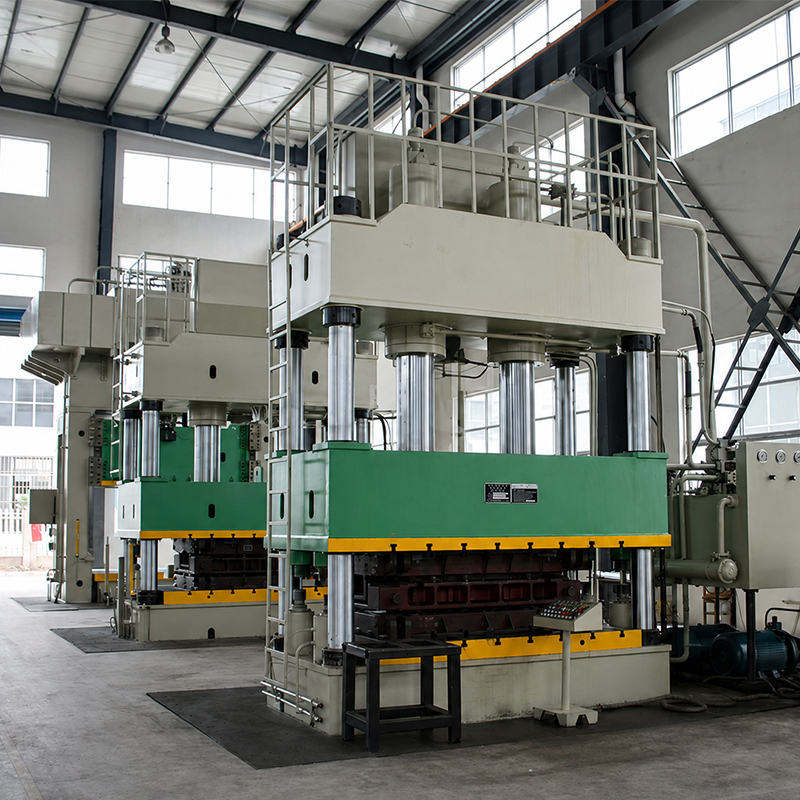

Result Showcase

Performance Features

◆ Features a computer-optimized four-column structure that is simple, economical, and practical.

◆ The hydraulic control system utilizes an integrated cartridge valve system, ensuring reliable operation, a long service life, and minimal hydraulic shock; it reduces the number of connecting pipes and potential leakage points, while employing independent control units for the integrated system.

◆ Equipped with an independent electrical control system that ensures reliable performance, intuitive operation, and ease of maintenance.

◆ Uses centralized push-button controls and offers two operating modes: adjustment and semi-automatic (with the semi-automatic mode supporting two process types: fixed-stroke single-cycle and fixed-pressure single-cycle).

◆ Parameters such as the slide's working pressure, the stroke range for rapid no-load descent, and the slow-speed working stroke can all be adjusted according to process requirements.

Optional Accessories

◆ Blanking shock absorption device

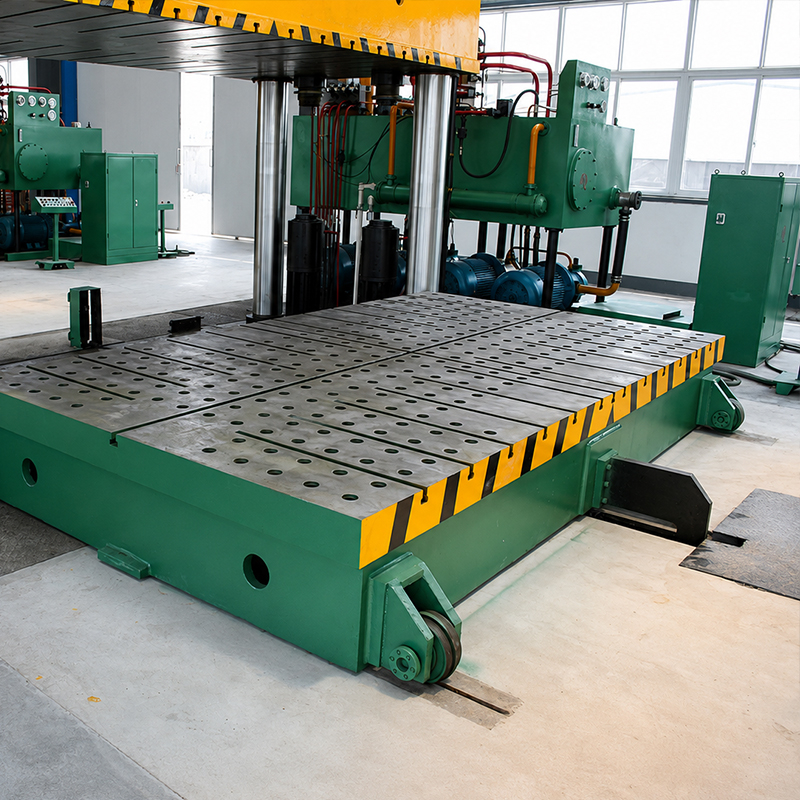

◆ Moving bolster

◆ Light curtain safety protection device

◆ Oil cooling system

◆ Industrial touch-screen display

◆ Ejection device

◆ Quick mold clamping mechanism

◆ Floating guide rails and rolling supports for mold changing

Description	Unit	YQ27-63	YQ27-100	YQ27-160	YQ27-200	YQ27-315	YQ27-400	YQ27-500	YQ27-630	YQ27-630A	YQ27-800	YQ27-800A	YQ27-1000	YQ27-1250	YQ27-1600	YQ27-2000
Rated Pressure	kN	630	1000	1600	2000	3150	4000	5000	6300	6300	8000	8000	10000	12500	16000	20000
Maximum Liquid Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Maximum Slide Stroke	mm	500	600	700	700	800	800	900	900	900	900	1000	1000	1200	1200	1200
Cushion Pressure	kN	190	400	400	630	1000	1000	1600	2000	2500	2500	3000	3000	4000	4000	5000
Maximum Cushion Stroke	mm	200	200	250	250	300	300	350	350	350	350	350	400	400	400	400
Daylight	mm	1000	1000	1000	1100	1250	1250	1500	1500	1500	1600	1800	1800	1800	1800	1800
Slide Speed – Descent	mm/s	150–180	150–180	100	100	100	150–180	150–180	150–180	150–200	200–250	200–250	200–250	250–300	250–300	250–300
Slide Speed – Pressing	mm/s	12–22	7–14	7–15	7–18	7–12	10–18	9–18	10–20	10–20	11–22	11–22	9–18	10–22	11–23	11–23
Slide Speed – Return	mm/s	100	120	70	70	110	100	150	160	160	180	180	160	200	200	220
Table Size – L-R	mm	580	720	960	920	1150	1400	1400	1500	2800	3000	3600	3000	3800	3500	3800
Table Size – F-B	mm	500	580	800	900	1200	1400	1400	1500	1600	2000	2400	2000	2200	2200	2600
Cushion Size – L-R	mm	380	450	600	760	900	960	960	960	2010	2300	2910	2310	3060	2760	3210
Cushion Size – F-B	mm	380	450	600	660	700	960	960	810	960	1410	1710	1410	1560	1560	2010
Main Motor Power	kW	7.5	7.5	11	15	22	2 × 22	2 × 22	45 + 22	45 + 22	2 × 45	2 × 45	2 × 45	3 × 45	4 × 45	5 × 45
