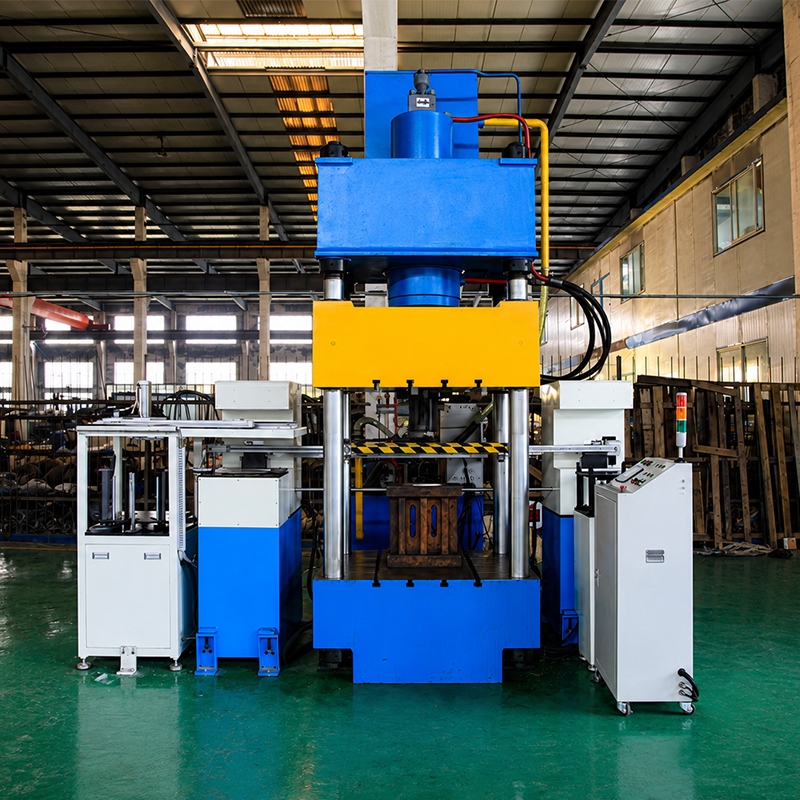

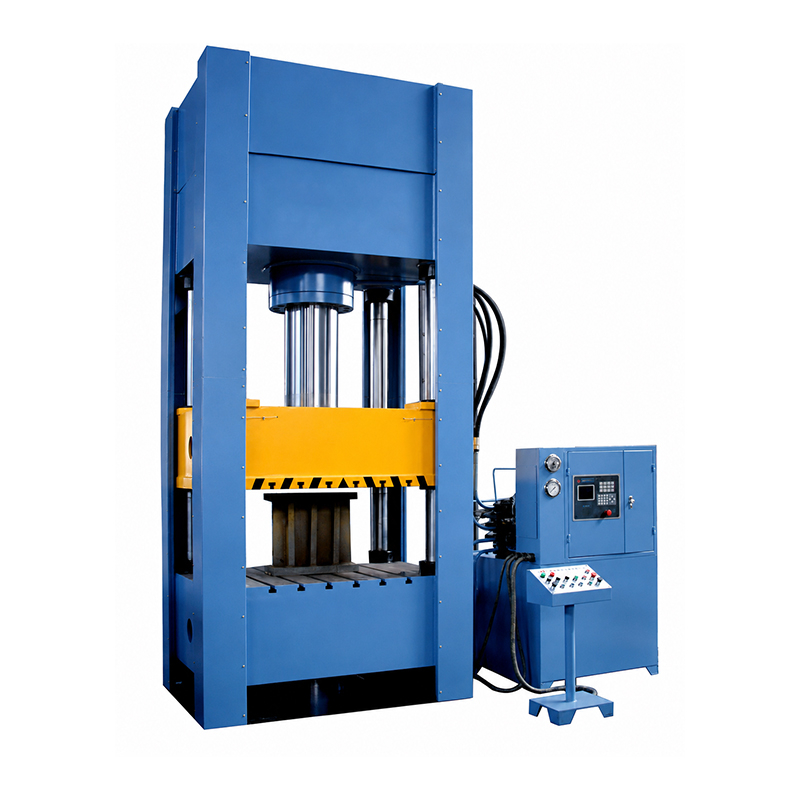

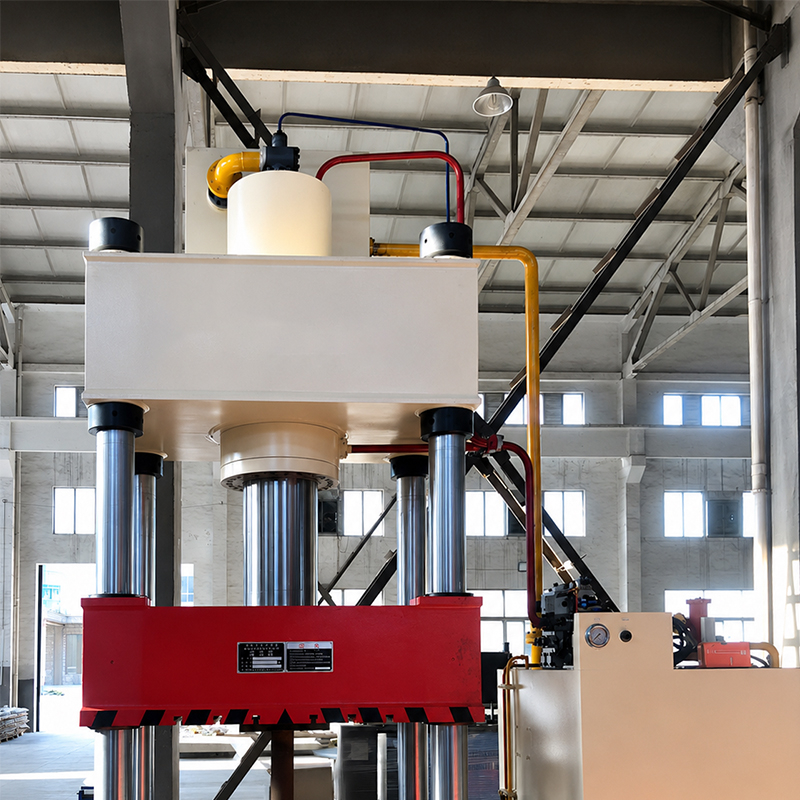

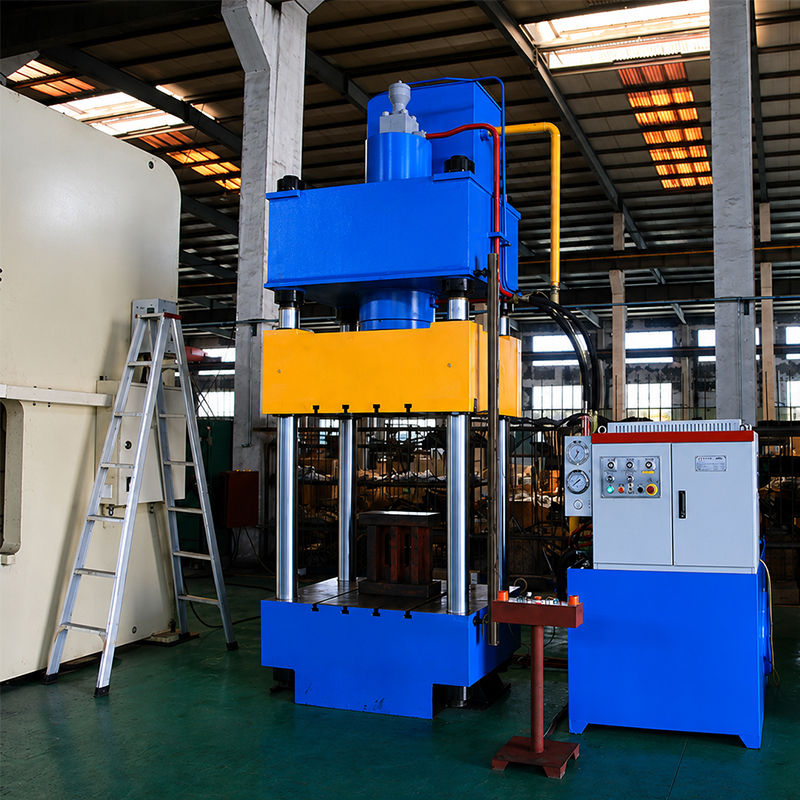

YQ32 Series Four-Column Universal Hydraulic Press

Share to:

YQ32 Series Four-Column Universal Hydraulic Press

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ32

Product Specifications

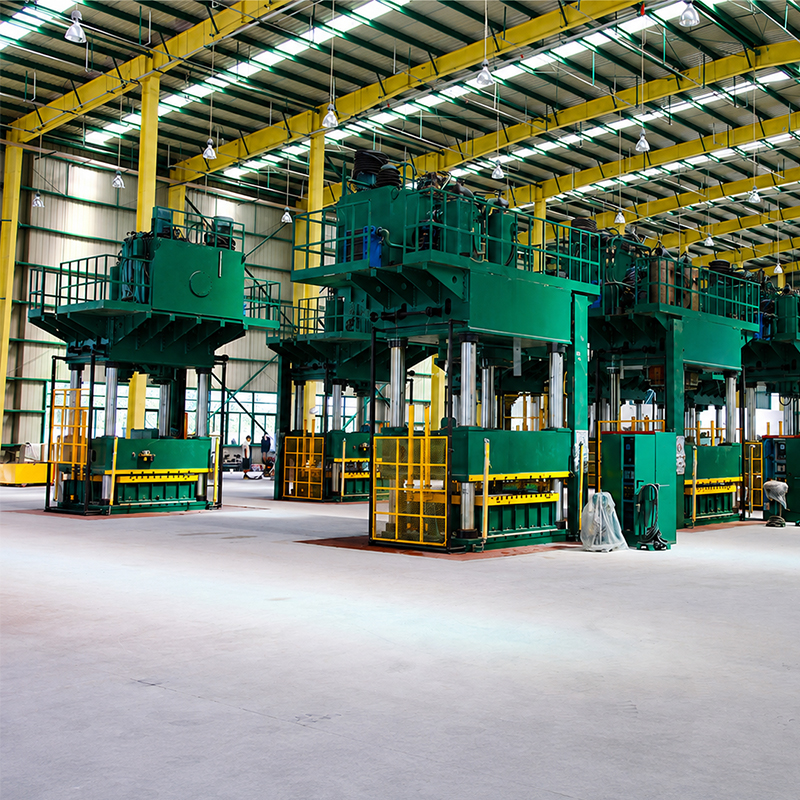

Result Showcase

Performance Features

Featuring a three-beam, four-column structure optimized via computer-aided design, the machine is simple, economical, and practical. The hydraulic control system utilizes an integrated cartridge valve system, ensuring reliable operation, a long service life, and minimal hydraulic shock, while also reducing piping connections and potential leakage points. An independent electrical control system offers reliable performance, intuitive operation, and easy maintenance. Centralized push-button control supports two operating modes: adjustment (inching) and single-cycle (semi-automatic). It enables two forming processes—fixed-stroke and fixed-pressure—and includes features such as pressure-holding with adjustable dwell time. Operating pressure and stroke length are adjustable within specified ranges to meet process requirements.

Optional Accessories

◆ Blanking shock absorption device

◆ Light curtain safety protection device

◆ Moving bolster

◆ Oil cooling unit

◆ Industrial touch-screen display

◆ Quick mold clamping mechanism

◆ Ejection device

◆ Floating guide rails and rolling brackets for mold changing

Description	Unit	YQ32-40	YQ32-63	YQ32-100	YQ32-100A	YQ32-160	YQ32-160B	YQ32-200	YQ32-200A	YQ32-315	YQ32-315B	YQ32-400	YQ32-500	YQ32-500C	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Rated Pressure	kN	400	630	1000	1000	1600	1600	2000	2000	3150	3150	4000	5000	5000	6300	8000	10000	12500	16000
Maximum Liquid Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Knock-out Pressure	kN	120	190	190	190	400	400	400	400	630	630	630	1000	1000	1000	1600	1600	1600	2000
Maximum Slide Stroke	mm	450	500	600	600	700	700	700	700	800	800	800	900	900	900	900	900	900	900
Maximum Knock-out Stroke	mm	150	200	200	200	200	200	250	250	300	300	300	350	350	350	350	350	400	400
Daylight	mm	750	750	880	880	1000	1000	1100	1100	1250	1250	1250	1500	1500	1500	1500	1500	1500	1500
Slide Speed – Descent	mm/s	160	180	120	120	100	100	100	100	100	100	100	100	100	80	80	80	80	80
Slide Speed – Pressing	mm/s	12–35	11–22	7–15	7–15	7–15	7–15	7–18	7–18	7–11.5	7–11.5	5–9	8–15	8–15	6–12	8–17	6–13	7–15	8–17
Slide Speed – Return	mm/s	120	100	120	120	70	70	70	70	60	60	55	70	70	60	70	70	70	70
Table Size – L-R	mm	500	580	720	1000	720	1000	1000	1260	1260	1400	1240	1400	2400	1500	1600	1600	1600	1600
Table Size – F-B	mm	460	500	580	800	620	800	900	1200	1200	1400	1200	1400	1400	1500	1600	1600	1600	1600
Main Motor Power	kW	5.5	7.5	7.5	7.5	11	11	15	15	22	22	22	2 × 22	2 × 22	2 × 22	45 + 22	45 + 22	2 × 45	3 × 45
