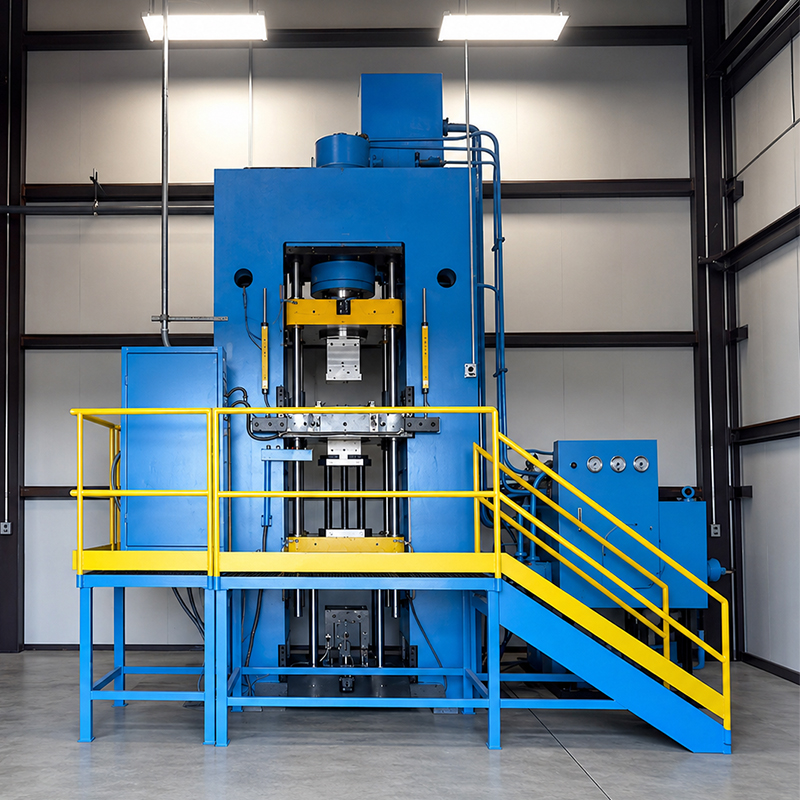

YQ79 Series Fully Automatic Powder Forming Hydraulic Press

Share to:

YQ79 Series Fully Automatic Powder Forming Hydraulic Press

Availability:

Quantity:



Inquire Add to Basket

Model:
YQ79

Product Specifications

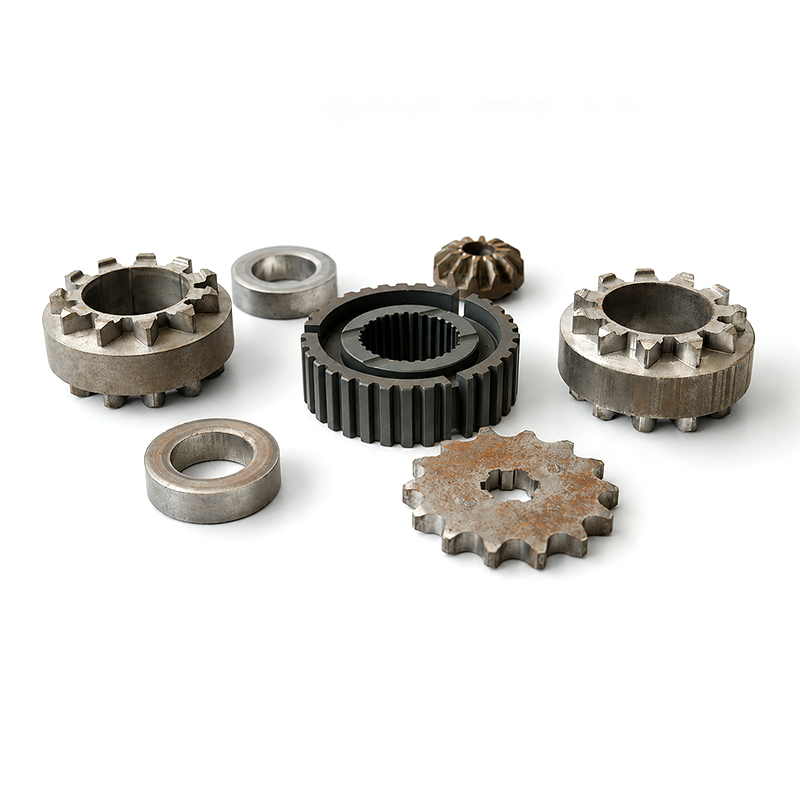

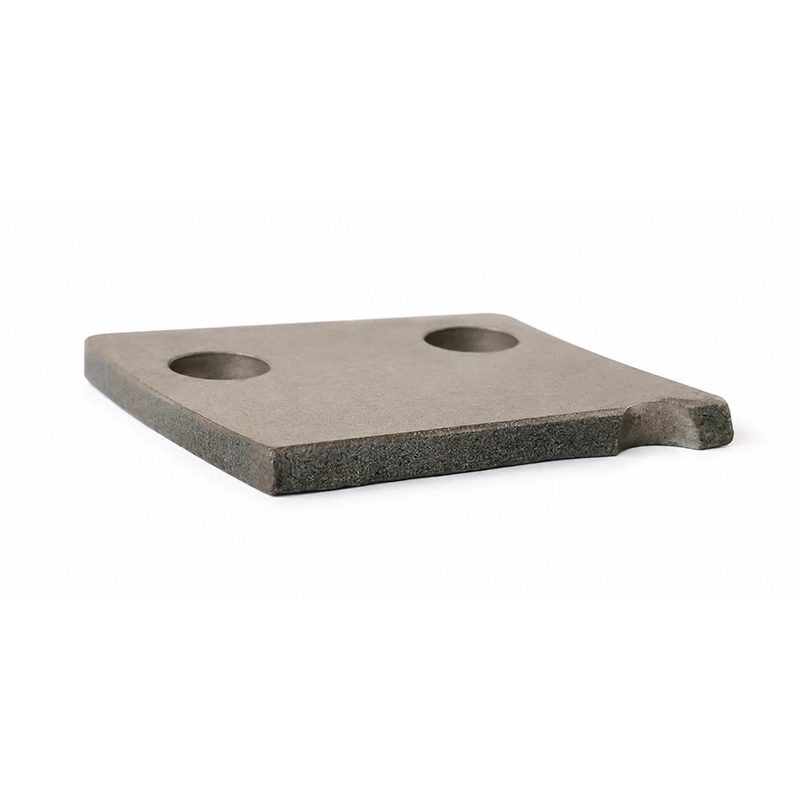

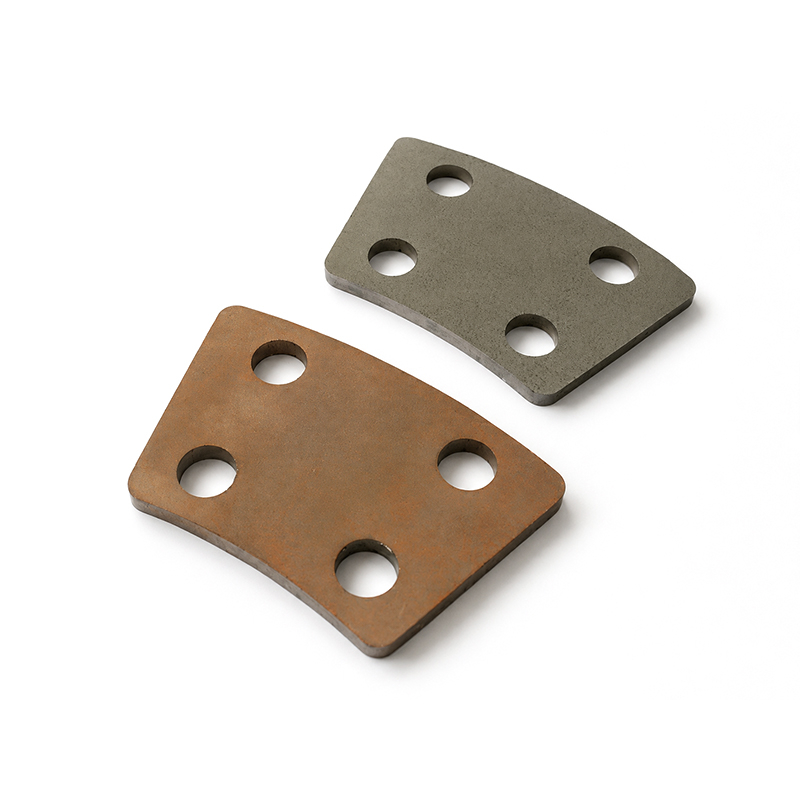

Result Showcase

Performance Features

This series of presses is primarily designed for the production of structural powder metallurgy components and mechanical parts, and is also suitable for the compression molding of precision ceramics, electronic ceramics, and cemented carbide products. The machines feature independent hydraulic and electrical systems, automatic material feeding and unloading mechanisms, and a floating pressing function that effectively controls product molding density. Users can choose between protective and standard demolding modes. The electrical control system utilizes a PLC, while the hydraulic system employs advanced integrated cartridge valves to ensure stable, continuous, and high-frequency operation; an oil cooling unit is also included. Centralized push-button controls and mechanical limit devices are incorporated to ensure product consistency.

Description	Unit	YQ79Z-40	YQ79Z-63	YQ79Z-100	YQ79Z-160	YQ79Z-200	YQ79Z-250	YQ79Z-315	YQ79Z-500	YQ79Z-630
Rated Pressure	kN	400	630	1000	1600	2000	2500	3150	5000	6300
Knock-out Pressure	kN	250	250	630	630	630	630	630	1000	1500
Maximum Liquid Pressure	MPa	25	25	25	25	25	25	25	25	25
Maximum Slide Stroke	mm	450	500	600	700	700	700	800	900	900
Knock-out Stroke	mm	150	200	200	200	250	250	300	350	350
Daylight	mm	1000	1000	1200	1200	1200	1200	1500	1750	2450
Slide Speed – Descent	mm/s	160	180	220	160	100	100	100	100	100
Slide Speed – Pressing	mm/s	14–35	11–22	7–15	7–15	9–18	7–14	5–11	7–14	5–12
Slide Speed – Return	mm/s	120	100	120	140	140	120	110	120	80
Knock-out Cylinder Speed – Knock-out	mm/s	50	50	20	30	50	50	50	45	45
Knock-out Cylinder Speed – Return	mm/s	70	70	35	50	70	70	70	80	60
Table Size – L-R	mm	500	570	720	720	1000	1000	1260	1400	1400
Table Size – F-B	mm	460	500	580	620	900	900	1200	1200	1200
Overall Dimensions – L-R	mm	2200	2500	1800	2800	3300	3800	4300	5300	5800
Overall Dimensions – F-B	mm	1250	1250	1300	1500	3100	3000	3300	3500	3700
Height Above Floor	mm	3300	3400	3600	4000	4000	4500	4800	5400	6000
Motor Power	kW	5.5	7.5	11	15	22	22	22	49.5	49.5
